Wieland 5-Pole Signal Brown Male Pluggable Electrical Connector - 16A
Wieland 5-Pole Signal Brown Male Pluggable Electrical Connector - 16A
SKU:CIR-74a10a
Reliable Wieland 5-Pole Signal Brown Male Connector - 16A for outdoor use. Secure, high voltage, and current rated. IP69 & NEMA 4X/6P protection.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 5-Pole Signal Brown Male Pluggable Electrical Connector - 16A
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 5-Pole Signal Brown Male Pluggable Electrical Connector - 16A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

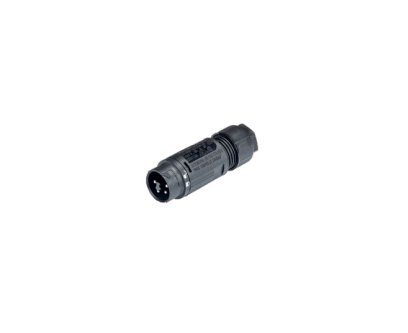

The Wieland 5-Pole Signal Brown Male Pluggable Electrical Connector is a high-quality connector designed for outdoor use. With a straight angle of plug and screw connection, it offers a secure and reliable connection for cables ranging from 7.1mm to 13mm in diameter. This connector is rated for a maximum voltage of 600V and a current of 16A, meeting international standards for IP69 and NEMA Type 4X/6P protection. Ideal for demanding applications, this connector ensures safety and durability in various settings.
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Signal Brown
General Connection Type
Screw Connection
General Number Of Poles
5
General Type
Male
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load
16 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
13 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
7.1 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
16 A
Technical Data Wire Size According To Canadian Ul Listed United
22 to 16 AWG
Technical Data Wire Size According To International Electrotechn
0.25 to 2.5 mm²
