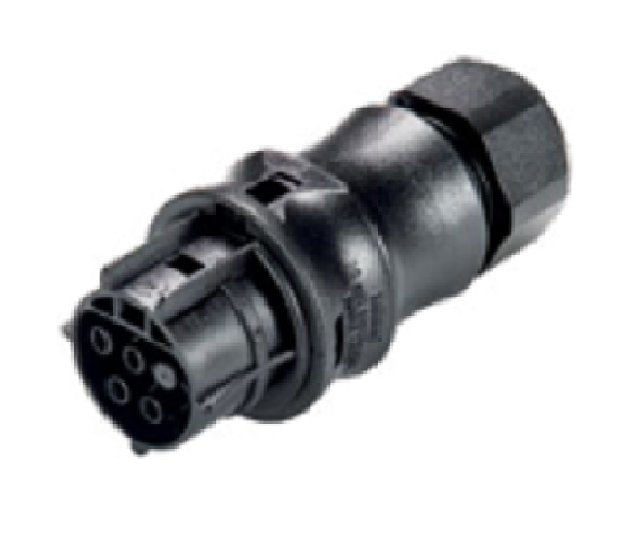

Wieland 5-Pole Turquoise Blue Female Connector - 20A
Wieland 5-Pole Turquoise Blue Female Connector - 20A
SKU:CIR-835bcc
High-quality 5-Pole Turquoise Blue Female Connector - 20A, ideal for outdoor use. IP69 & Type 4X/6P protection standards met. Compliant with IEC & cULus.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 5-Pole Turquoise Blue Female Connector - 20A
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 5-Pole Turquoise Blue Female Connector - 20A
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 5-Pole Turquoise Blue Female Connector is a high-quality pluggable electrical connector designed for outdoor use. With a rated current of 20A and a straight angle of plug, this connector offers reliable screw connections suitable for cables ranging from 6mm to 10mm in diameter. It meets IP69 and Type 4X/6P protection standards, ensuring durability and safety in harsh environments. Compliant with IEC and cULus wire size requirements, this connector is a versatile choice for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Turquoise Blue
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
5
Specifications Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
