Wieland 5-Pole Turquoise Blue Female Electrical Connector - 16A
Wieland 5-Pole Turquoise Blue Female Electrical Connector - 16A
SKU:CIR-2a3c22
Reliable 5-Pole Turquoise Blue Female Electrical Connector - 16A, Screw Connection, Self-Locking, IP69 and RoHS Compliant
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Wieland 5-Pole Turquoise Blue Female Electrical Connector - 16A
$34.99
Quantity: 1
Claim Your Seller Account
Wieland 5-Pole Turquoise Blue Female Electrical Connector - 16A
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

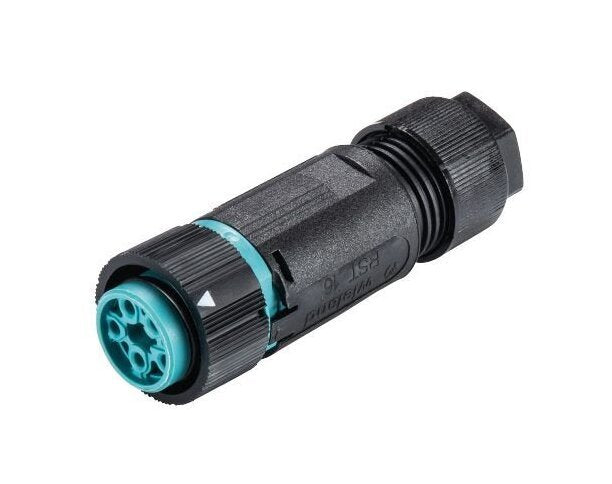

The Wieland 5-Pole Turquoise Blue Female Electrical Connector is a high-quality pluggable connector designed for outdoor use with a wide range of applications. This connector features a screw connection, self-locking mechanism, and is suitable for cable diameters ranging from 7.1mm to 13mm. With a rated current of 16A and a maximum voltage of 600V, it ensures reliable and secure electrical connections. The turquoise blue coding color and black housing make it easily identifiable and durable for long-term use. This connector complies with various international standards, including IP69 and RoHS, making it a reliable choice for both consumer and institutional buyers.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Fine Stranded Connection Cross Section
2.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Maximum Stranded Connection Cross Section
2.5 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.25 mm²
Connection Data Minimum Solid Connection Cross Section
0.25 mm²
Connection Data Minimum Stranded Connection Cross Section
0.25 mm²
Connection Data Sheath Strip Length
25 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm

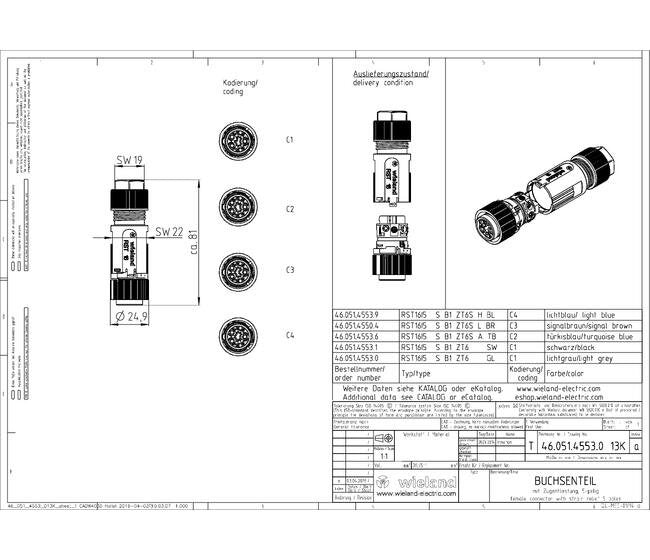

Dimensions Height
24.9 mm
Dimensions Length
81 mm
Dimensions Width
24.9 mm
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Turquoise Blue
General Color Of Housing Inclusive Strain Relief
Black
General Connection Type
Screw Connection
General Lockable
Self-Locking (Unlocking by Hand)
General Marking Of Poles
1 | 2 | L | N | PE
General Number Of Poles
5
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.173 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Maximum Cable Diameter
13 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
7.1 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
22 to 16 AWG
Technical Data Wire Size According To International Electrotechn
0.25 to 2.5 mm²
