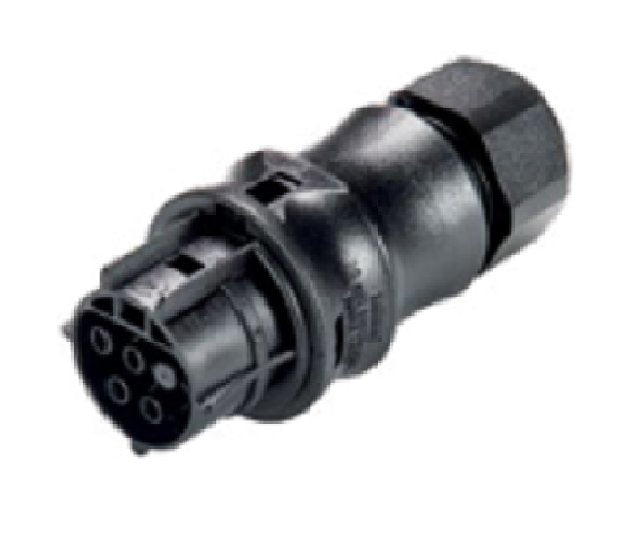

Wieland 5-Pole Yellow Female Connector
Wieland 5-Pole Yellow Female Connector
SKU:CIR-cee898
High-quality 5-pole yellow female connector for outdoor use. Straight angle, screw connection. IP69 and Type 4X/6P protection. Compatible with cables 6-10mm & wires 0.75-4mm²/18-14 AWG.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 5-Pole Yellow Female Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 5-Pole Yellow Female Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 5-Pole Yellow Female Connector is a high-quality pluggable electrical connector designed for outdoor use. It features a straight plug angle, screw connection, and a color-coded yellow contact carrier. With a maximum rated voltage of 600 V and a rated current of 20 A, this connector meets stringent IP69 and Type 4X / 6P protection standards. Its compatibility with cable diameters ranging from 6mm to 10mm and wire sizes from 0.75 to 4 mm² (IEC) and 18 to 14 AWG (cULus) makes it a versatile choice for various applications. Trust in Wieland for reliable and durable electrical connections.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Yellow
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
5
Specifications Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
