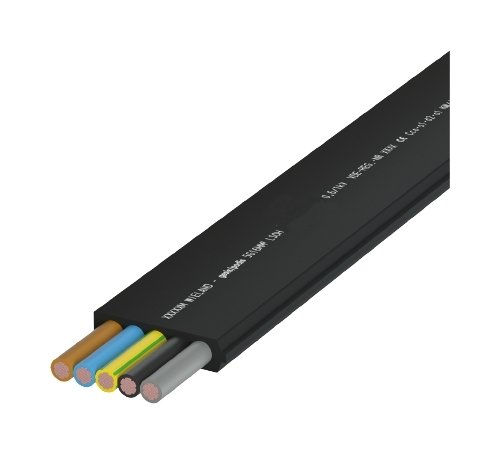

Wieland 55mm Schwarz XPE 5G16 Flat Cable
Wieland 55mm Schwarz XPE 5G16 Flat Cable
SKU:POD-bc4ebd
High-quality Wieland 55mm Schwarz XPE 5G16 Flat Cable for fixed installations, with halogen-free, flame-retardant properties. CPR class Cca-s1d2a1, VDE reg. certified.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Wieland 55mm Schwarz XPE 5G16 Flat Cable
$35.99
Quantity: 1
Claim Your Seller Account
Wieland 55mm Schwarz XPE 5G16 Flat Cable
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 55mm Schwarz XPE 5G16 Flat Cable is a high-quality, halogen-free, flame-retardant cable designed for fixed installations. With a static bending radius of 55mm and a conductor category of Class 5 = Flexible, this cable offers reliability and flexibility. It meets CPR class Cca-s1d2a1, VDE regulations, and is oil-resistant according to EN60811-2-1. Suitable for various applications, this cable ensures safety and performance.
Product Specifications
Classification Eclass 81 Classification
27062002
Classification Etim 40 Classification
EC000825
Classification Etim 50 Classification
EC000825
Classification Etim 60 Classification
EC000825
Classification Etim 70 Classification
EC003250
Classification Etim 80 Classification
EC003250
Classification Etim 90 Classification
EC003250
General Approximate Cable Height
11.5 mm
General Approximate Cable Width
48 mm
General Brands
Wieland
General Cable Weight Per Kilometer Km
1320 kg
General Conductor Category
Class 5 = Flexible
General Core Identification
Color
General Core Insulation Material
Polyethylene (PE)
General Flame Retardant According To Din 60332 1 2
Yes
General Halogen Free According To En50267 2 3
Yes
General Low Smoke According To En50268 2
No
General Maximum Installation Temperature
50 ºC
General Maximum Surface Temperature Fixed Conductor
70 ºC
General Minimum Installation Temperature
5 ºC
General Minimum Surface Temperature Fixed Conductor
-25 ºC
General Number Of Cores
5
General Oil Resistant According To En60811 2 1
Yes
General Outer Sheath Color
Black
General Outer Sheath Material
Cross-Linked Copolymer
General Screen
No
General Static Bending Radius
55 mm
General Yellowgreen Conductor
Yes
Product Compliance Standards
REACH-SVHC Compliant | RoHS Compliant
Technical Data Nominal Conductor Cross Section
16 mm²
Technical Data Nominal Voltage U0
690 V
Technical Data Nominal Voltage Un
1 kV
