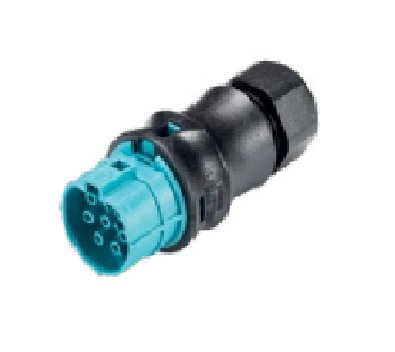

Wieland 6/7 Poles Female Connector, Turquoise Blue, 20A
Wieland 6/7 Poles Female Connector, Turquoise Blue, 20A
SKU:CIR-3ea3ea
Secure outdoor electrical connections with the Wieland 6/7 Poles Female Connector in Turquoise Blue. Compliant with IEC and cULus standards for voltages up to 600V.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 6/7 Poles Female Connector, Turquoise Blue, 20A
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 6/7 Poles Female Connector, Turquoise Blue, 20A
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 6/7 Poles Female Connector in Turquoise Blue is an essential component in pluggable electrical connections, designed for outdoor use. With a sturdy screw connection and a straight angle plug, this connector ensures secure and reliable power transmission. It features a 6mm to 10mm cable diameter range, IP69 and Type 4X/6P protection ratings, and complies with IEC and cULus standards for voltages up to 600V, making it suitable for a range of applications demanding high performance and durability.
Product Specifications
Note Note
Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Turquoise Blue
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
6
Specifications Type
Female
Technical Data Current According To Canadian Ul Recognized Unite
3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)
Technical Data Current According To International Electrotechnic
3 x 20 A + 4 x 5 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X/6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.2 to 1.5 mm²
