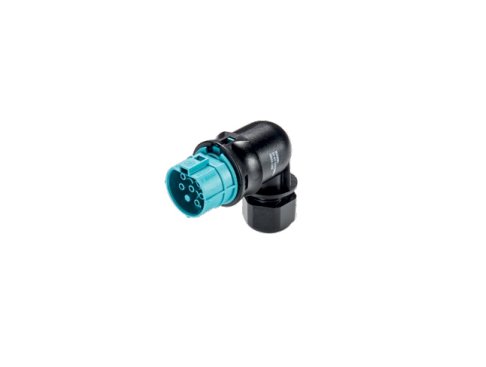

Wieland 6/7 Poles Light Blue Female Connector 20A
Wieland 6/7 Poles Light Blue Female Connector 20A
SKU:CIR-2255ba
High-quality 6/7 Poles Light Blue Female Connector with 20A rating for secure outdoor electrical connections.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Wieland 6/7 Poles Light Blue Female Connector 20A
$15.99
Quantity: 1
Claim Your Seller Account
Wieland 6/7 Poles Light Blue Female Connector 20A
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 6/7 Poles Light Blue Female Connector is a high-quality pluggable electrical connector designed for outdoor applications. Featuring an angled 90º plug for convenient installation, this connector offers a screw connection type for secure and reliable connectivity. With a rated voltage ranging from 250V to 600V, and a current rating of 3 x 20A + 4 x 5A according to IEC standards, this connector ensures efficient power transmission. It also meets IP69 and Type 4X/6P protection standards, making it suitable for harsh environments.
Product Specifications
Note Note
Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change
Specifications Angle Of Plug
Angled 90º
Specifications Color Of Codingcontact Carrier
Light Blue
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
7
Specifications Type
Female
Technical Data Current According To Canadian Ul Recognized Unite
3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)
Technical Data Current According To International Electrotechnic
3 x 20 A + 4 x 5 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X/6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.2 to 1.5 mm²
