Wieland 6-Pole Heavy-Duty Industrial Connector Housing
Wieland 6-Pole Heavy-Duty Industrial Connector Housing
SKU:IND-930a60
Durable Wieland 6-Pole Industrial Connector Housing with IP54 protection & UV resistance. Ideal for industrial use.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Wieland 6-Pole Heavy-Duty Industrial Connector Housing
$79.99
Quantity: 1
Claim Your Seller Account
Wieland 6-Pole Heavy-Duty Industrial Connector Housing
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

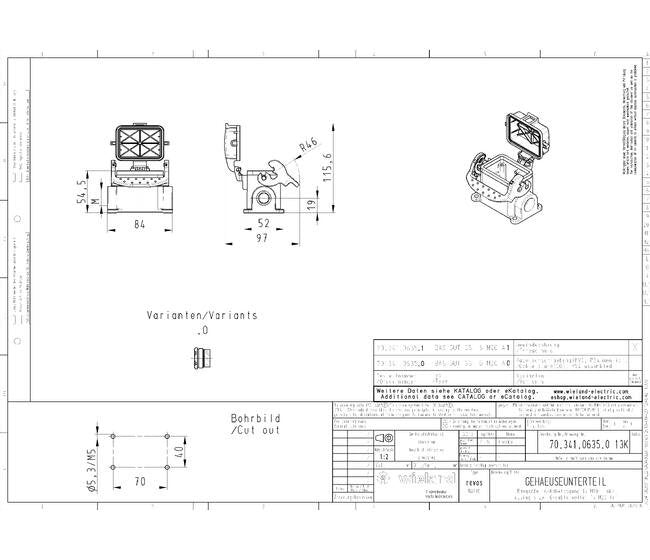

The Wieland BOTTOM BAS GUT GS 6 M20 A0 Multi-Pole Heavy-Duty Industrial Connector Housing is a top-quality aluminum construction with a single locking lever and cable gland M20 on the left side. It features a protective cover (IP54) for reliable performance in industrial settings. With a low profile design and UV resistance, this connector housing ensures durability and safety. Suitable for a wide temperature range from -40°C to 120°C, it offers efficient surface mounting with a hinged lid for easy access. Compliant with RoHS standards, this housing meets stringent quality requirements for industrial applications.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
IP54
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
BOTTOM BAS GUT GS 6 M20 A0
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
Sideways
Model Construction
6
Model Emc Version
No
Model Height
54.5 mm
Model Hinged Lid
Yes
Model Length
84 mm
Model Locking Mechanism
Single Locking Lever
Model Thread Size M
20
Model Type
Surface Mounting (Base)
Model Type Of Cable
Gland nut
Model Width
52 mm
Model With Cable Screw Gland
Yes
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(a); III-6(c)
Specifications Number Of Poles
6
Specifications Profile
Low
