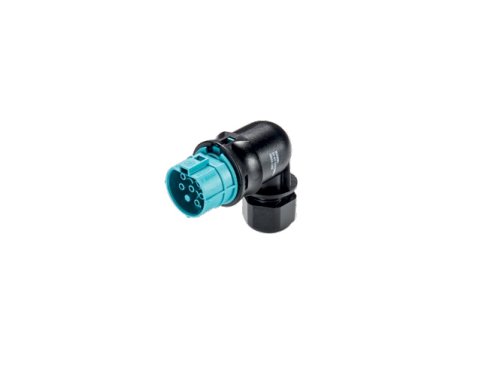

Wieland 6-Pole Turquoise Blue Female Connector

Name: Wieland 6-Pole Turquoise Blue Female Connector
Brand: Wieland Electric Inc.
SKU: CIR-383fa6
Price: 29.99 USD
Availability: OutOfStock

SKU:CIR-383fa6

Durable 6-Pole Turquoise Blue Female Connector for outdoor use. IP69 and Type 4X/6P rated, supports up to 600V and 3 x 20 A. Ideal for consumer and institutional electrical applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wieland 6-Pole Turquoise Blue Female Connector offers a durable screw connection design suitable for outdoor use. With an IP69 and Type 4X/6P rating, it provides robust protection against environmental conditions. This connector supports voltages up to 600V and currents up to 3 x 20 A to meet demanding electrical requirements, making it ideal for outdoor applications in both consumer and institutional settings.

Product Specifications

Note Note

Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change

Specifications Angle Of Plug

Angled 90Âº

Specifications Color Of Codingcontact Carrier

Turquoise Blue

Specifications Connection Type

Screw Connection

Specifications Number Of Poles

Specifications Type

Female

Technical Data Current According To Canadian Ul Recognized Unite

3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)

Technical Data Current According To International Electrotechnic

3 x 20 A + 4 x 5 A

Technical Data Degree Of Protection According To Canadian Ul Lis

Type 4X/6P

Technical Data Degree Of Protection According To International E

IP69

Technical Data Maximum Cable Diameter

14 mm

Technical Data Maximum Rated Voltage

600 V

Technical Data Minimum Cable Diameter

10 mm

Technical Data Minimum Rated Voltage

250 V | 400 V

Technical Data Wire Size According To Canadian Ul Listed United

20 to 14 AWG

Technical Data Wire Size According To International Electrotechn

0.2 to 1.5 mmÂ²
