Wieland 6-Pole Turquoise Blue Male Connector

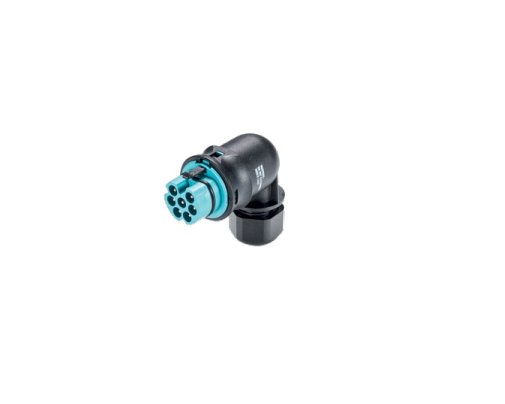

Name: Wieland 6-Pole Turquoise Blue Male Connector
Brand: Wieland Electric Inc.
SKU: CIR-c7c3e1
Price: 29.99 USD
Availability: OutOfStock

SKU:CIR-c7c3e1

Secure and reliable Wieland 6-Pole Turquoise Blue Male Connector for outdoor electrical connections. Angled 90º plug, screw connection, IP69 protection.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your electrical connections with the Wieland 6-Pole Turquoise Blue Male Connector. With angled 90º plug design, screw connection, and IP69 protection, it offers a secure and reliable connection suitable for outdoor applications. This connector supports a wide range of cable diameters and voltages, meeting IEC and UL standards for current ratings. Optional water seals provide additional protection, making it a versatile choice for various settings.

Product Specifications

Note Note

Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change

Specifications Angle Of Plug

Angled 90Âº

Specifications Color Of Codingcontact Carrier

Turquoise Blue

Specifications Connection Type

Screw Connection

Specifications Number Of Poles

Specifications Type

Male

Technical Data Current According To Canadian Ul Recognized Unite

3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)

Technical Data Current According To International Electrotechnic

3 x 20 A + 4 x 5 A

Technical Data Degree Of Protection According To Canadian Ul Lis

Type 4X/6P

Technical Data Degree Of Protection According To International E

IP69

Technical Data Maximum Cable Diameter

14 mm

Technical Data Maximum Rated Voltage

600 V

Technical Data Minimum Cable Diameter

10 mm

Technical Data Minimum Rated Voltage

250 V | 400 V

Technical Data Wire Size According To Canadian Ul Listed United

20 to 14 AWG

Technical Data Wire Size According To International Electrotechn

0.2 to 1.5 mmÂ²
