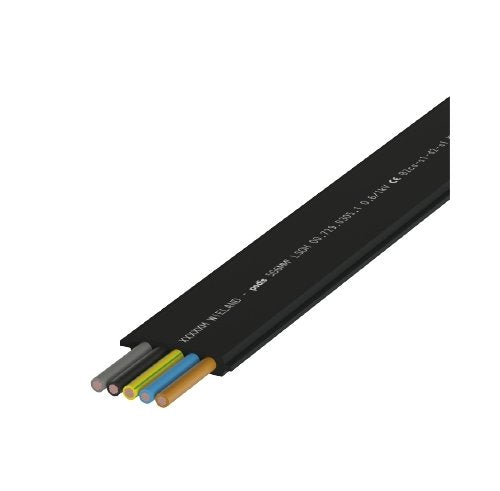

Wieland 60mm Schwarz XPE 5G16 Flat Cable
Wieland 60mm Schwarz XPE 5G16 Flat Cable
SKU:POD-ce1caf
Enhance your electrical setup with the flexible and safe Wieland 60mm Schwarz XPE 5G16 Flat Cable. Meets UL, REACH-SVHC, RoHS standards.
Regular price
$42.99
Regular price
Sale price
$42.99
Unit price
per
Initiate Order
Wieland 60mm Schwarz XPE 5G16 Flat Cable
$42.99
Quantity: 1
Claim Your Seller Account
Wieland 60mm Schwarz XPE 5G16 Flat Cable
$42.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your electrical systems with the Wieland 60mm Schwarz XPE 5G16 Flat Cable. This cross-linked copolymer cable boasts a nominal conductor cross-section of 16mm², offering a reliable 0.6/1kV rating. With a static bending radius of 60mm and halogen-free, flame-retardant construction, this cable ensures safety and flexibility for fixed installations. Meeting UL, REACH-SVHC, and RoHS standards, this very flexible, black cable is a top choice for demanding applications.
Product Specifications
Classification Eclass 81 Classification
27062002
Classification Etim 40 Classification
EC000825
Classification Etim 50 Classification
EC000825
Classification Etim 60 Classification
EC000825
Classification Etim 70 Classification
EC003250
Classification Etim 80 Classification
EC003250
Classification Etim 90 Classification
EC003250
General Approximate Cable Height
11.5 mm
General Approximate Cable Width
48 mm
General Brands
Wieland
General Cable Weight Per Kilometer Km
1270 kg
General Conductor Category
Class 6 = Very Flexible
General Core Identification
Color
General Core Insulation Material
Cross-Linked Copolymer
General Flame Retardant According To En50265 2 1
Yes
General Halogen Free According To En50267 2 2
Yes
General Halogen Free According To En50267 2 3
Yes
General Low Smoke According To En50268 2
No
General Maximum Installation Temperature
50 ºC
General Maximum Surface Temperature Fixed Conductor
90 ºC
General Minimum Installation Temperature
5 ºC
General Minimum Surface Temperature Fixed Conductor
-25 ºC
General Number Of Cores
5
General Outer Sheath Color
Black
General Screen
No
General Shock Resistance
IK10
General Static Bending Radius
60 mm
General Yellowgreen Conductor
Yes
Product Compliance Standards
REACH-SVHC Compliant | RoHS Compliant
Specifications Certificationapproval
Underwriters Laboratories (UL) Listed
Technical Data Nominal Conductor Cross Section
16 mm²
Technical Data Nominal Voltage U0
690 V
Technical Data Nominal Voltage Un
1000 V
