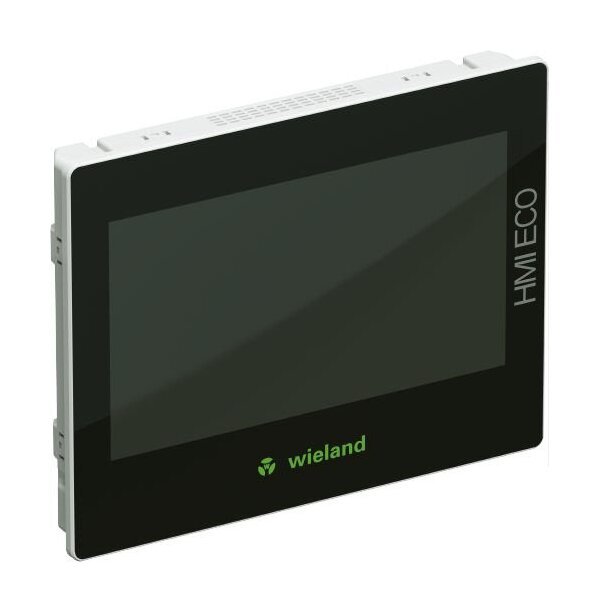

Wieland 7 Inch Diagonal HMI Panel
Wieland 7 Inch Diagonal HMI Panel
SKU:HMI-10f52e
Innovative 7 Inch Diagonal HMI Panel for robust industrial control applications. TFT display, IP66 protection, Modbus TCP support.
Regular price
$649.99
Regular price
Sale price
$649.99
Unit price
per
Initiate Order
Wieland 7 Inch Diagonal HMI Panel
$649.99
Quantity: 1
Claim Your Seller Account
Wieland 7 Inch Diagonal HMI Panel
$649.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 7 Inch Diagonal HMI Panel is a cutting-edge Human-Machine Interface solution designed for industrial applications. With a TFT 800x480 Pixel display and IP66 frontside protection, this HMI panel offers a rugged and reliable interface. It features 64 MB RAM, USB Host/Client, Ethernet connectivity, and Modbus TCP support, all programmable with the user-friendly hmiPLAN software. Ideal for data visualization and control in challenging environments.
Product Specifications
Accessories Accessories
Part NumberHMI-Plan License (ZW.000.0170.0)DescriptionSingle-user license for hmiPLAN, configuration software for HMI applications and visualizationClassificationECLASS 11 - 27242592ECLASS 8.1 - 27249209ETIM 9.0 - EC002584ETIM 8.0 - EC002584ETIM 7.0 - EC002584ETIM 6.0 - EC002584ETIM 5.0 - EC002584ETIM 4.0 - EC002584
Classification Eclass 11 Classification
27242301
Classification Eclass 81 Classification
27242301
Classification Etim 40 Classification
EC001414
Classification Etim 50 Classification
EC001414
Classification Etim 60 Classification
EC001414
Classification Etim 70 Classification
EC001414
Classification Etim 80 Classification
EC001414
Classification Etim 90 Classification
EC001414
Dimensions Build In Depth
37 mm
Dimensions Cutout Height
138 mm
Dimensions Cutout Width
191.5 mm
Dimensions Height Of The Front
148.5 mm
Dimensions Weight
550 g
Dimensions Width Of The Front
203.5 mm
Display Backlight Life
20000 h
Display Central Processing Unit Cpu Type
RISC ARM9 32 Bit
Display Maximum Colors
16 bits
Display Number Of Horizontal Pixels
800
Display Number Of Vertical Pixels
480
Display Screen Diagonal
7 in
Display Touch Technology
Resistive Touch
Display Type Of Display
Thin Film Transistor (TFT) Colour Liquid Crystal Display (LCD) with Light Emitting Diode (LED) Backlight
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(a) | III-6(c) | III-7(a) | III-7(c)I
Specifications Model
HMI-ECO-070
Supply Circuit Direct Current Dc Rated Consumption
20 W
Supply Circuit Maximum Rated Supply Voltage At Direct Current Dc
26.4 V
Supply Circuit Minimum Rated Supply Voltage At Direct Current Dc
21.6 V
Supply Circuit Voltage Type
DC
Technical Data Approvals
Yes
Technical Data Battery Backed Ram
Yes
Technical Data Compatible Plc Families
Allen Bradley | Beckhoff | Schneider | Siemens | u.v.a. | Wago
Technical Data Cooling
Natural Cooling with Minimum 50 mm Distance to Environment
Technical Data Degree Of Protection Ip
IP66
Technical Data Power Supply Type
SELV (UL 508, UL 248)
