Wieland 7-Pole Black Female Connector
Wieland 7-Pole Black Female Connector
SKU:CIR-b1313f
High-quality 7-Pole Black Female Connector for secure outdoor electrical connections. IP69 waterproof rated.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 7-Pole Black Female Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 7-Pole Black Female Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

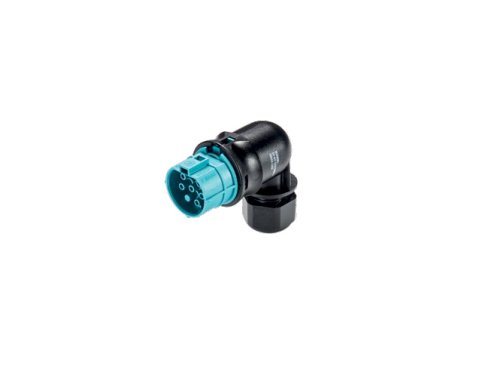

The Wieland 7-Pole Black Female Connector is a high-quality pluggable electrical connector designed for outdoor applications. With an angled 90º plug, screw connection type, and a waterproof rating of IP69, this connector ensures secure and durable connections. It supports a range of cable diameters from 6mm to 10mm and is rated for voltages up to 600V. Meeting IEC and cULus standards, this connector is ideal for demanding industrial environments requiring reliable electrical connections.
Product Specifications
Note Note
Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change
Specifications Angle Of Plug
Angled 90º
Specifications Color Of Codingcontact Carrier
Black
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
7
Specifications Type
Female
Technical Data Current According To Canadian Ul Recognized Unite
3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)
Technical Data Current According To International Electrotechnic
3 x 20 A + 4 x 5 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X/6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.2 to 1.5 mm²
