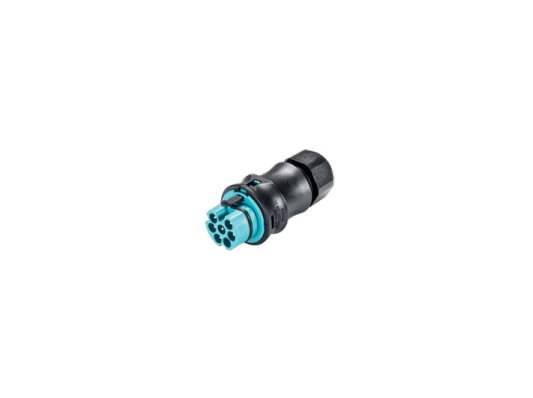

Wieland 7-Pole Black Male Connector
Wieland 7-Pole Black Male Connector
SKU:CIR-953d4c
High-quality Wieland 7-Pole Black Male Connector for outdoor use, IP69 rated, dual voltage support, and optional water seals for added protection.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 7-Pole Black Male Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 7-Pole Black Male Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 7-Pole Black Male Connector is a top-of-the-line solution for pluggable electrical connections, designed for outdoor use with an IP69 rating. It features a straight plug with screw connection, accommodating cables ranging from 6mm to 10mm in diameter. With dual voltage ratings of 250V/400V and 600V, this connector supports a current of 3 x 20 A + 4 x 5 A according to IEC standards. Optional water seals provide additional protection. Trust in Wieland quality for reliable, efficient electrical connections.
Product Specifications
Note Note
Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Black
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
7
Specifications Type
Male
Technical Data Current According To Canadian Ul Recognized Unite
3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)
Technical Data Current According To International Electrotechnic
3 x 20 A + 4 x 5 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X/6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.2 to 1.5 mm²
