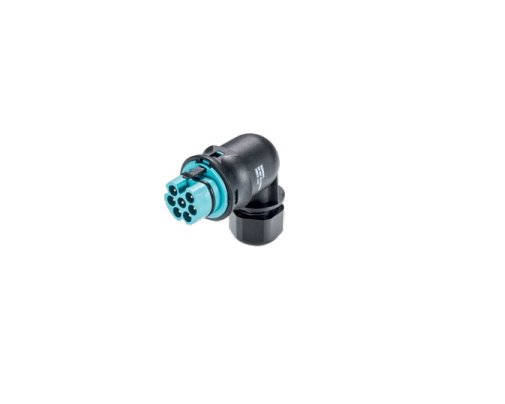

Wieland 7-Pole Black Male Connector, 20A
Wieland 7-Pole Black Male Connector, 20A
SKU:CIR-8aac7c
Durable black male connector with 7 poles, 20A, angled 90º plug, and IP69 protection for outdoor use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 7-Pole Black Male Connector, 20A
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 7-Pole Black Male Connector, 20A
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 7-Pole Black Male Connector is a high-quality pluggable electrical connector designed for outdoor applications. With an angled 90º plug, screw connection, and IP69 protection rating, this connector ensures reliable performance in challenging environments. It can accommodate cable diameters ranging from 6mm to 10mm and is rated for voltages up to 600V. Meeting international standards for current and wire size, this connector is a versatile and durable choice for electrical connections.
Product Specifications
Note Note
Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change
Specifications Angle Of Plug
Angled 90º
Specifications Color Of Codingcontact Carrier
Black
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
7
Specifications Type
Male
Technical Data Current According To Canadian Ul Recognized Unite
3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)
Technical Data Current According To International Electrotechnic
3 x 20 A + 4 x 5 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X/6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.2 to 1.5 mm²
