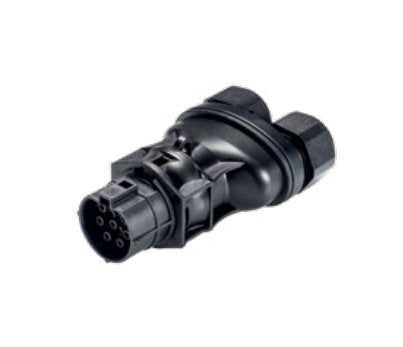

Wieland 7-Pole Female Splitter Connector, Light Gray, 10mm Cable Diameter

Name: Wieland 7-Pole Female Splitter Connector, Light Gray, 10mm Cable Diameter
Brand: Wieland Electric Inc.
SKU: CIR-474cb5
Price: 34.99 USD
Availability: OutOfStock

SKU:CIR-474cb5

High-quality Wieland Female Splitter Connector for outdoor use with 7 poles, light gray color, and 10mm cable diameter. Compliant with cULus-Listed | IEC standards.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wieland Female Splitter Connector is a high-quality circular electrical connector designed for outdoor use. This connector features a screw connection type, light gray color of coding/contact carrier, and is cULus-Listed | IEC compliant. With 7 poles and a minimum cable diameter of 10mm, it offers a secure connection for various applications. Rated for voltages of 250V, 400V, and 600V, it meets strict IP69 and Type 4X/6P protection standards, ensuring reliability in challenging environments. The connector also complies with current ratings according to IEC and cURus, making it ideal for demanding electrical setups.

Product Specifications

Note Note

Technical details are subject to change

Specifications Color Of Codingcontact Carrier

Light Gray

Specifications Connection Type

Screw Connection

Specifications Current According To Canadian Ul Recognized Unite

3 x 16 A + 4 x 2 A (Canada) | 3 x 20 A + 4 x 5 A (USA)

Specifications Current According To International Electrotechnic

3 x 20 A + 4 x 5 A

Specifications Degree Of Protection According To Canadian Ul Rec

Type 4X/6P

Specifications Degree Of Protection According To International E

IP69

Specifications Maximum Cable Diameter

14 mm

Specifications Minimum Cable Diameter

10 mm

Specifications Model

Female

Specifications Number Of Poles

Specifications Standards

cULus-Listed | IEC

Specifications Voltage

250 V | 400 V | 600 V

Specifications Wire Size According To Canadian Ul Recognized Uni

20 to 14 AWG

Specifications Wire Size According To International Electrotechn

0.2 to 1.5 mmÂ²
