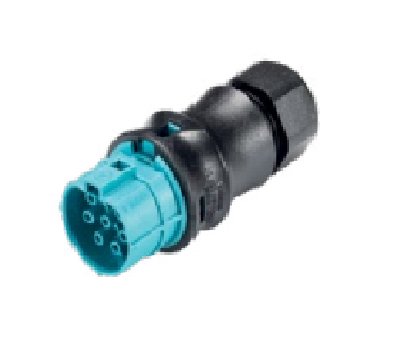

Wieland 7-Pole Light Blue Female Connector - 20A Pluggable Electrical Connectors

Name: Wieland 7-Pole Light Blue Female Connector - 20A Pluggable Electrical Connectors
Brand: Wieland Electric Inc.
SKU: CIR-e9139a
Price: 29.99 USD
Availability: OutOfStock

SKU:CIR-e9139a

Reliable Wieland 7-Pole Light Blue Female Connector for secure outdoor electrical connections.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wieland 7-Pole Light Blue Female Connector is a top-tier solution for outdoor electrical connections. With a straight angle of plug and screw connection type, it ensures secure and reliable power transmission. This connector is IP69 rated, meeting stringent industry standards for water and dust protection. It accommodates cable diameters ranging from 10mm to 14mm, supporting voltages up to 600V. Compliant with IEC and cULus wire size standards, it is a robust choice for applications requiring 20A current capacity. Optional water seals provide added protection when unmated, guaranteeing durability and longevity.

Product Specifications

Note Note

Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change

Specifications Angle Of Plug

Straight

Specifications Color Of Codingcontact Carrier

Light Blue

Specifications Connection Type

Screw Connection

Specifications Number Of Poles

Specifications Type

Female

Technical Data Current According To Canadian Ul Recognized Unite

3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)

Technical Data Current According To International Electrotechnic

3 x 20 A + 4 x 5 A

Technical Data Degree Of Protection According To Canadian Ul Lis

Type 4X/6P

Technical Data Degree Of Protection According To International E

IP69

Technical Data Maximum Cable Diameter

14 mm

Technical Data Maximum Rated Voltage

600 V

Technical Data Minimum Cable Diameter

10 mm

Technical Data Minimum Rated Voltage

250 V | 400 V

Technical Data Wire Size According To Canadian Ul Listed United

20 to 14 AWG

Technical Data Wire Size According To International Electrotechn

0.2 to 1.5 mmÂ²
