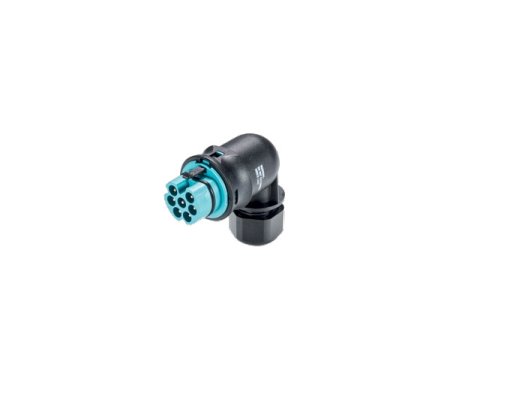

Wieland 7-Pole Light Blue Male Connector - 20A
Wieland 7-Pole Light Blue Male Connector - 20A
SKU:CIR-0ce84f
Reliable 7-Pole Light Blue Male Connector for outdoor electrical connections. IP69 and Type 4X/6P protection ratings. Optional water seals for added protection.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 7-Pole Light Blue Male Connector - 20A
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 7-Pole Light Blue Male Connector - 20A
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 7-Pole Light Blue Male Connector is designed for reliable electrical connections in outdoor settings. With an angled 90º plug and screw connection type, this connector ensures secure and stable connections. It features a minimum rated voltage of 250V, maximum rated voltage of 600V, and a current rating compliant with both IEC and cURus standards. The IP69 and Type 4X/6P protection ratings make it suitable for rugged environments. Optional water seals provide added protection when unmated, enhancing durability and safety.
Product Specifications
Note Note
Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change
Specifications Angle Of Plug
Angled 90º
Specifications Color Of Codingcontact Carrier
Light Blue
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
7
Specifications Type
Male
Technical Data Current According To Canadian Ul Recognized Unite
3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)
Technical Data Current According To International Electrotechnic
3 x 20 A + 4 x 5 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X/6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.2 to 1.5 mm²
