Wieland 7-Pole Turquoise Blue Female Connector
Wieland 7-Pole Turquoise Blue Female Connector
SKU:CIR-2f0431
High-quality 7-Pole Turquoise Blue Female Connector for outdoor use, IP69 and Type 4X/6P protection, up to 20A current handling.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 7-Pole Turquoise Blue Female Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 7-Pole Turquoise Blue Female Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

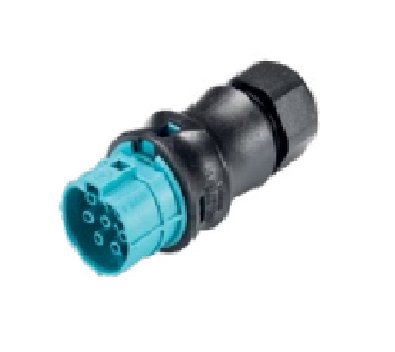

The Wieland 7-Pole Turquoise Blue Female Connector is a high-quality pluggable electrical connector designed for outdoor use. It features a straight angle plug with a screw connection, suitable for cables with diameters ranging from 6mm to 10mm. With a minimum rated voltage of 250V and a maximum of 600V, this connector can handle currents up to 20A per IEC standards. Additionally, it offers IP69 and Type 4X/6P protection levels for enhanced durability and reliability in challenging environments.
Product Specifications
Note Note
Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Turquoise Blue
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
7
Specifications Type
Female
Technical Data Current According To Canadian Ul Recognized Unite
3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)
Technical Data Current According To International Electrotechnic
3 x 20 A + 4 x 5 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X/6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.2 to 1.5 mm²
