Wieland 7-Pole Turquoise Blue Female Connector
Wieland 7-Pole Turquoise Blue Female Connector
SKU:CIR-d7a568
High-quality Wieland 7-Pole Turquoise Blue Female Connector with screw connection type, suitable for outdoor use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 7-Pole Turquoise Blue Female Connector
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 7-Pole Turquoise Blue Female Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

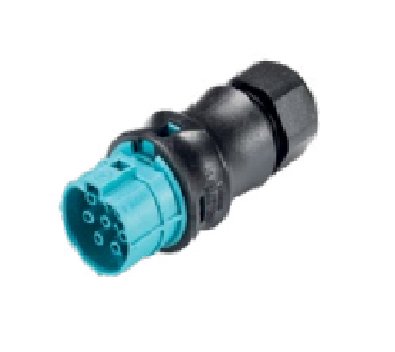

The Wieland 7-Pole Turquoise Blue Female Connector is a high-quality pluggable electrical connector designed for outdoor use. With a color-coded contact carrier in a striking turquoise blue shade, this connector offers a straight angle of plug for easy connections. It features a screw connection type and can accommodate cables ranging from 10mm to 14mm in diameter. Meeting stringent international standards, this connector has a maximum rated voltage of 600V and a current rating of 3 x 20A + 4 x 5A. Additionally, it is IP69 and Type 4X/6P rated for superior protection against environmental factors.
Product Specifications
Note Note
Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Turquoise Blue
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
7
Specifications Type
Female
Technical Data Current According To Canadian Ul Recognized Unite
3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)
Technical Data Current According To International Electrotechnic
3 x 20 A + 4 x 5 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X/6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
14 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
10 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.2 to 1.5 mm²
