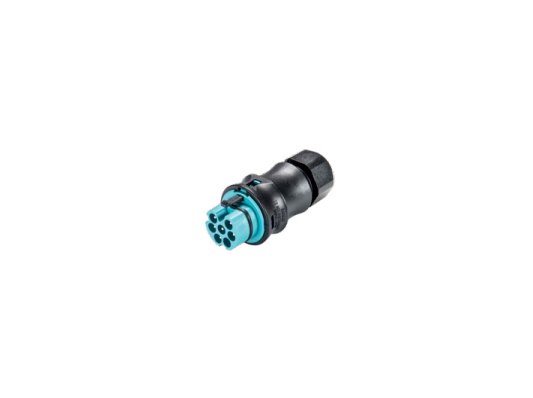

Wieland 7-Pole Turquoise Blue Male Connector
Wieland 7-Pole Turquoise Blue Male Connector
SKU:CIR-9fa414
High-quality Wieland 7-Pole Turquoise Blue Male Connector for outdoor use, 20A, 600V, IP69 protection, optional water seals. Contact us for customization options.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Wieland 7-Pole Turquoise Blue Male Connector
$25.99
Quantity: 1
Claim Your Seller Account
Wieland 7-Pole Turquoise Blue Male Connector
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 7-Pole Turquoise Blue Male Connector is a high-quality pluggable electrical connector suitable for outdoor use. With a straight angle of plug and screw connection type, this connector is designed to handle currents of up to 20 A with a maximum rated voltage of 600 V. It features IP69 and Type 4X/6P protection, ensuring durability and reliability in outdoor settings. The optional water seals provide added protection when unmated, making it ideal for various electrical applications with cable diameters ranging from 6mm to 10mm. Contact us for additional customization options.
Product Specifications
Note Note
Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Turquoise Blue
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
7
Specifications Type
Male
Technical Data Current According To Canadian Ul Recognized Unite
3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)
Technical Data Current According To International Electrotechnic
3 x 20 A + 4 x 5 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X/6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.2 to 1.5 mm²
