Wieland 7-Pole Turquoise Blue Male Connector
Wieland 7-Pole Turquoise Blue Male Connector
SKU:CIR-3baa78
High-quality 7-Pole Turquoise Blue Male Connector with IP69 protection for reliable outdoor use. Current rating: 3 x 20 A + 4 x 5 A (IEC).
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 7-Pole Turquoise Blue Male Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 7-Pole Turquoise Blue Male Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

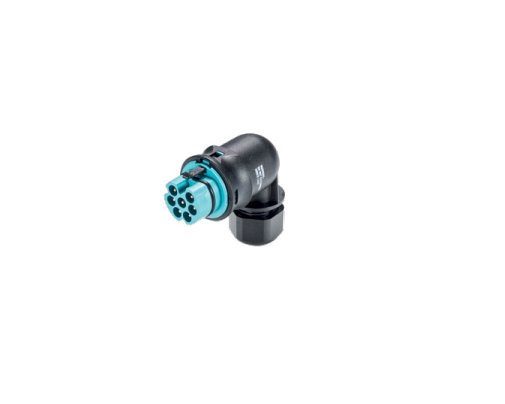

The Wieland 7-Pole Turquoise Blue Male Connector is a high-quality pluggable electrical connector designed for outdoor use. Featuring an angled 90-degree plug, screw connection, and IP69 protection rating, this connector ensures reliable performance in various environments. With a current rating of 3 x 20 A + 4 x 5 A (IEC) and wire sizes ranging from 0.2 to 1.5 mm² (IEC), it meets stringent international standards for safety and efficiency. Optional water seals provide added protection, making it ideal for outdoor applications.
Product Specifications
Note Note
Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change
Specifications Angle Of Plug
Angled 90º
Specifications Color Of Codingcontact Carrier
Turquoise Blue
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
7
Specifications Type
Male
Technical Data Current According To Canadian Ul Recognized Unite
3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)
Technical Data Current According To International Electrotechnic
3 x 20 A + 4 x 5 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X/6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.2 to 1.5 mm²
