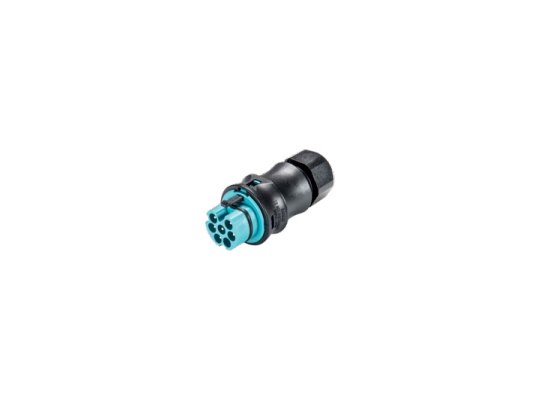

Wieland 7-Pole Turquoise Blue Male Connector - 20A
Wieland 7-Pole Turquoise Blue Male Connector - 20A
SKU:CIR-404ed9
High-quality Wieland 7-Pole Turquoise Blue Male Connector for outdoor use. Straight angle plug, IP69 protection, and 20A rating.
Regular price
$27.99
Regular price
Sale price
$27.99
Unit price
per
Initiate Order
Wieland 7-Pole Turquoise Blue Male Connector - 20A
$27.99
Quantity: 1
Claim Your Seller Account
Wieland 7-Pole Turquoise Blue Male Connector - 20A
$27.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 7-Pole Turquoise Blue Male Connector is a high-quality pluggable electrical connector suitable for outdoor applications. It features a straight angle plug, IP69 protection, and screw connections. With a minimum cable diameter of 10mm and a maximum cable diameter of 14mm, this connector is rated for voltages up to 600V. Compliant with IEC and cULus standards, it can handle currents of 3 x 20A + 4 x 5A, making it a reliable choice for various electrical connections.
Product Specifications
Note Note
Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Turquoise Blue
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
7
Specifications Type
Male
Technical Data Current According To Canadian Ul Recognized Unite
3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)
Technical Data Current According To International Electrotechnic
3 x 20 A + 4 x 5 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X/6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
14 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
10 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.2 to 1.5 mm²
