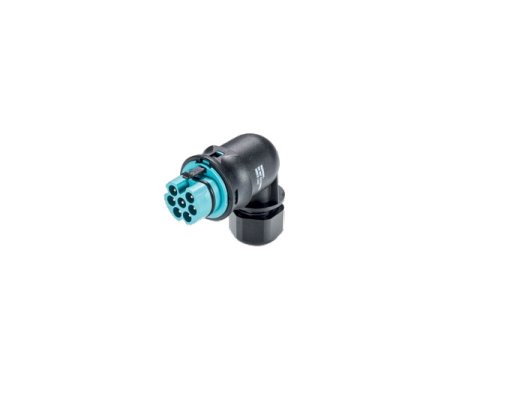

Wieland 7 Poles Black Male Electrical Connector
Wieland 7 Poles Black Male Electrical Connector
SKU:CIR-221422
High-quality Wieland 7 Poles Black Male Connector with IP69 protection, screw connection, and versatile voltage compatibility.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Wieland 7 Poles Black Male Electrical Connector
$25.99
Quantity: 1
Claim Your Seller Account
Wieland 7 Poles Black Male Electrical Connector
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 7 Poles Black Male Connector is a high-quality pluggable electrical connector designed for outdoor use. With an angled 90º plug for convenient installation, this connector features a screw connection and meets IP69 and Type 4X/6P protection standards. It supports a wide range of cable diameters and voltages, making it ideal for a variety of applications. Compliant with IEC and cULus wire size and current ratings, this connector offers optional water seals for added protection.
Product Specifications
Note Note
Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change
Specifications Angle Of Plug
Angled 90º
Specifications Color Of Codingcontact Carrier
Black
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
7
Specifications Type
Male
Technical Data Current According To Canadian Ul Recognized Unite
3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)
Technical Data Current According To International Electrotechnic
3 x 20 A + 4 x 5 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X/6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
14 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
10 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.2 to 1.5 mm²
