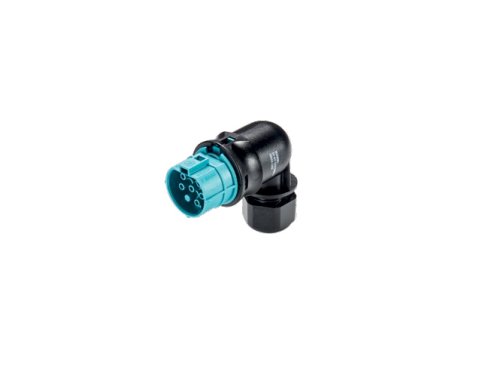

Wieland 7 Poles Light Blue Female Connector
Wieland 7 Poles Light Blue Female Connector
SKU:CIR-295de2
Get reliable outdoor connectivity with the Wieland 7 Poles Light Blue Female Connector. IP69 rated, screw connection, and angled plug for secure installations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 7 Poles Light Blue Female Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 7 Poles Light Blue Female Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 7 Poles Light Blue Female Connector is a high-quality pluggable electrical connector designed for outdoor use. With a screw connection, angled 90º plug, and IP69 rated protection, this connector ensures secure and reliable connections in various applications. It can accommodate cable diameters ranging from 10mm to 14mm, with a maximum rated voltage of 600V. Meeting IEC and cULus standards, this connector is suitable for demanding electrical installations, offering optional water seals for added protection.
Product Specifications
Note Note
Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change
Specifications Angle Of Plug
Angled 90º
Specifications Color Of Codingcontact Carrier
Light Blue
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
7
Specifications Type
Female
Technical Data Current According To Canadian Ul Recognized Unite
3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)
Technical Data Current According To International Electrotechnic
3 x 20 A + 4 x 5 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X/6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
14 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
10 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.2 to 1.5 mm²
