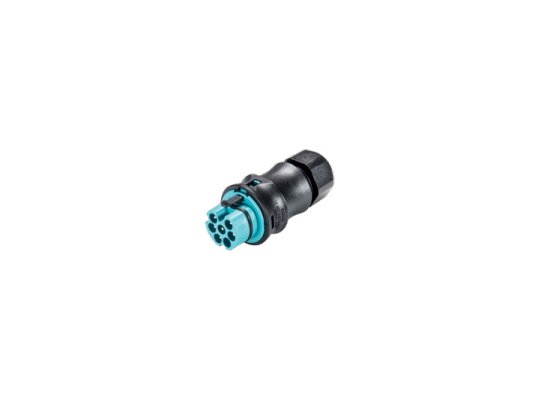

Wieland 7 Poles Light Blue Male Connector - 20A
Wieland 7 Poles Light Blue Male Connector - 20A
SKU:CIR-0a9fd8
Reliable Wieland 7-Pole Light Blue Male Connector - 20A for outdoor use, features IP69 & Type 4X/6P protection standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 7 Poles Light Blue Male Connector - 20A
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 7 Poles Light Blue Male Connector - 20A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 7 Poles Light Blue Male Connector is a high-quality pluggable electrical connector suitable for outdoor applications. With a straight angle of plug and a screw connection type, this connector is designed for reliability and durability. It features a color-coded contact carrier in light blue for easy identification. Meeting IP69 and Type 4X/6P protection standards, this connector ensures secure connections in demanding environments. With a voltage rating of 250V/400V and a current rating of 3 x 20A + 4 x 5A (IEC), this connector is a dependable choice for both consumer and institutional buyers.
Product Specifications
Note Note
Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Light Blue
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
7
Specifications Type
Male
Technical Data Current According To Canadian Ul Recognized Unite
3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)
Technical Data Current According To International Electrotechnic
3 x 20 A + 4 x 5 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X/6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.2 to 1.5 mm²
