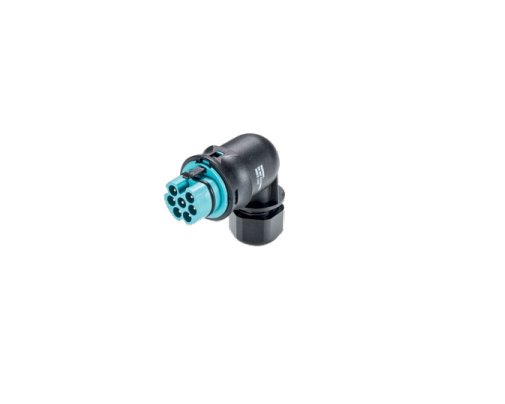

Wieland 7 Poles Light Blue Male Connector - Outdoor Rated

Name: Wieland 7 Poles Light Blue Male Connector - Outdoor Rated
Brand: Wieland Electric Inc.
SKU: CIR-406fbc
Price: 24.99 USD
Availability: OutOfStock

SKU:CIR-406fbc

High-quality Wieland 7 Poles Light Blue Male Connector - Outdoor Rated. Angled 90º plug with secure screw connection. Compliant with IEC and cURus standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wieland 7 Poles Light Blue Male Connector is a high-quality, outdoor-rated electrical connector designed for reliable performance in demanding environments. With an angled 90º plug and screw connection type, this connector ensures secure and stable connections. It features a minimum rated voltage of 250V, maximum rated voltage of 600V, and current ratings compliant with IEC and cURus standards. This connector also offers optional water seals for added protection, making it ideal for outdoor applications.

Product Specifications

Note Note

Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change

Specifications Angle Of Plug

Angled 90Âº

Specifications Color Of Codingcontact Carrier

Light Blue

Specifications Connection Type

Screw Connection

Specifications Number Of Poles

Specifications Type

Male

Technical Data Current According To Canadian Ul Recognized Unite

3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)

Technical Data Current According To International Electrotechnic

3 x 20 A + 4 x 5 A

Technical Data Degree Of Protection According To Canadian Ul Lis

Type 4X/6P

Technical Data Degree Of Protection According To International E

IP69

Technical Data Maximum Cable Diameter

14 mm

Technical Data Maximum Rated Voltage

600 V

Technical Data Minimum Cable Diameter

10 mm

Technical Data Minimum Rated Voltage

250 V | 400 V

Technical Data Wire Size According To Canadian Ul Listed United

20 to 14 AWG

Technical Data Wire Size According To International Electrotechn

0.2 to 1.5 mmÂ²
