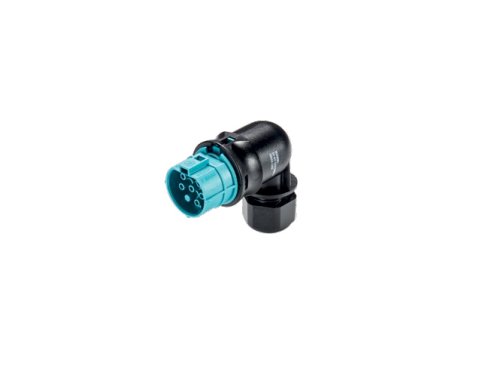

Wieland 7-Poles Light Gray Female Connector - 20A
Wieland 7-Poles Light Gray Female Connector - 20A
SKU:CIR-940586
High-quality 7-Poles Light Gray Female Connector with screw connection and IP69 protection for outdoor use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 7-Poles Light Gray Female Connector - 20A
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 7-Poles Light Gray Female Connector - 20A
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 7-Poles Light Gray Female Connector is a high-quality pluggable electrical connector designed for outdoor applications. With an angled 90° plug and screw connection type, this connector ensures secure and reliable connections. It features a minimum cable diameter of 10mm, maximum cable diameter of 14mm, and a rated voltage range from 250V to 600V. Meeting IP69 and Type 4X/6P standards, this connector provides excellent protection against environmental factors. Optional water seals for individual contacts enhance protection when unmated.
Product Specifications
Note Note
Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change
Specifications Angle Of Plug
Angled 90º
Specifications Color Of Codingcontact Carrier
Light Gray
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
7
Specifications Type
Female
Technical Data Current According To Canadian Ul Recognized Unite
3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)
Technical Data Current According To International Electrotechnic
3 x 20 A + 4 x 5 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X/6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
14 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
10 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.2 to 1.5 mm²
