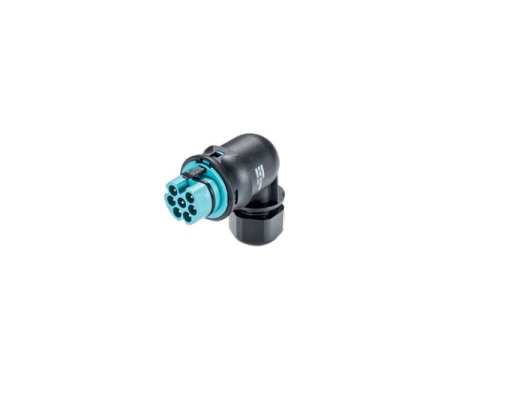

Wieland 7 Poles Light Gray Male Electrical Connector
Wieland 7 Poles Light Gray Male Electrical Connector
SKU:CIR-8afb2f
High-quality 7-pole light gray male electrical connector with angled 90º plug, screw connection, IP69 protection. Ideal for outdoor use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 7 Poles Light Gray Male Electrical Connector
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 7 Poles Light Gray Male Electrical Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 7 Poles Light Gray Male Connector is a high-quality pluggable electrical connector suitable for outdoor use. With an angled 90º plug design and screw connection, this connector ensures secure and reliable electrical connections. It has a minimum cable diameter of 6mm and a maximum of 10mm, making it versatile for various applications. Rated for 250V to 600V, with current ratings compliant with IEC and cURus standards, this connector offers IP69 protection. Optional water seals provide added protection. Contact us for more information on additional configurations and technical details.
Product Specifications
Note Note
Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change
Specifications Angle Of Plug
Angled 90º
Specifications Color Of Codingcontact Carrier
Light Gray
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
7
Specifications Type
Male
Technical Data Current According To Canadian Ul Recognized Unite
3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)
Technical Data Current According To International Electrotechnic
3 x 20 A + 4 x 5 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X/6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.2 to 1.5 mm²
