Wieland 7G4 PVC Flat Cables
Wieland 7G4 PVC Flat Cables
SKU:POD-c7fbbe
Enhance systems with Wieland 7G4 PVC Flat Cables - flexible, durable, and oil-resistant. Meets TC-ER UL 1277, cUR-AWM standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wieland 7G4 PVC Flat Cables
$49.99
Quantity: 1
Claim Your Seller Account
Wieland 7G4 PVC Flat Cables
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

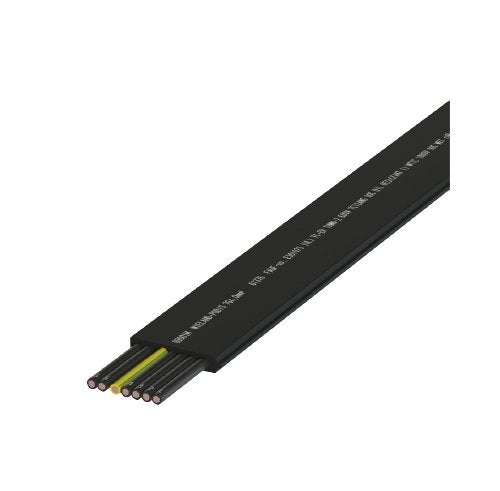

Upgrade your electrical systems with Wieland 7G4 PVC Flat Cables. These tray cables feature a 7 x 4 mm² size with fine stranded PVC insulation. With a black PVC outer sheath and 600V nominal voltage, these cables meet TC-ER UL 1277, cUR-AWM Class II Group A/B, and FT4 standards. Designed for flexibility and durability, these cables are oil-resistant and suitable for temperatures ranging from -40°C to 90°C. Weighing 440 kg per kilometer, these cables ensure reliable performance in diverse settings.
Product Specifications
Classification Eclass 81 Classification
27062002
Classification Etim 40 Classification
EC000825
Classification Etim 50 Classification
EC000825
Classification Etim 60 Classification
EC000825
Classification Etim 70 Classification
EC003250
Classification Etim 80 Classification
EC003250
Classification Etim 90 Classification
EC003250
General Approximate Cable Height
6 mm
General Approximate Cable Width
35 mm
General Brands
Wieland
General Cable Weight Per Kilometer Km
440 kg
General Conductor Category
Class 5 = Flexible
General Core Identification
Numbers
General Core Insulation Material
Polyvinyl Chloride (PVC)
General Halogen Free According To En50267 2 3
No
General Low Smoke According To En50268 2
No
General Maximum Installation Temperature
50 ºC
General Maximum Surface Temperature Fixed Conductor
90 ºC
General Minimum Installation Temperature
5 ºC
General Minimum Surface Temperature Fixed Conductor
-40 ºC
General Number Of Cores
7
General Oil Resistant According To En60811 2 1
Yes
General Outer Sheath Color
Black
General Outer Sheath Material
Polyvinyl Chloride (PVC)
General Screen
No
General Static Bending Radius
72 mm
General Tray Cable Size
7 x 4 mm²
General Yellowgreen Conductor
Yes
Product Compliance Reach Svhc Cas Numbers
80-05-7
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
4.4'-Isopropylidenediphenol
Product Compliance Standards
RoHS Compliant
Technical Data Nominal Conductor Cross Section
4 mm²
Technical Data Nominal Voltage U0
600 V
Technical Data Nominal Voltage Un
600 V
Technical Data Test Voltage
2.5 kV
