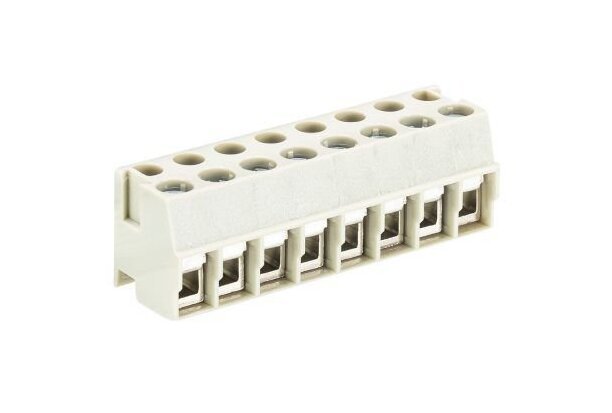

Wieland 8142/5 Pluggable PCB Terminal Block
Wieland 8142/5 Pluggable PCB Terminal Block
SKU:PRI-bdd2bd
Reliable Wieland 8142/5 Pluggable PCB Terminal Block for secure and efficient PCB connections.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Wieland 8142/5 Pluggable PCB Terminal Block
$25.99
Quantity: 1
Claim Your Seller Account
Wieland 8142/5 Pluggable PCB Terminal Block
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 8142/5 Pluggable Printed Circuit Board (PCB) Terminal Block offers reliable connectivity for PCB applications. This terminal block features a screw connection, 5 poles, 5mm pitch, and comes with marking for easy identification. With a nominal cross-section of 2.5 mm², rated current of 8 A, and overvoltage categories I, II, and III compliance, this terminal block ensures robust performance. It supports solid cross-sections from 0.14 mm² to 4 mm² and fine-stranded cross-sections from 0.14 mm² to 2.5 mm². The thermoplastic insulation material, copper silicon contact base, and silicone contact surface material guarantee durability and safety. Compliant with RoHS and REACH regulations with exceptions, this terminal block is ideal for various industrial and commercial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27440402
Classification Etim 50 Classification
EC002637
Classification Etim 60 Classification
EC002637
Classification Etim 70 Classification
EC002637
Connection Data Maximum Fine Stranded Cross Section
2.5 mm²
Connection Data Maximum Solid Cross Section
4 mm²
Connection Data Minimum Fine Stranded Cross Section
0.14 mm²
Connection Data Minimum Solid Cross Section
0.14 mm²
Connection Data Wire Strip Length
5 mm
General Brands
Wieland
General Connection Type
Screw Connection
General Mating Direction Towards Connector
90 º
General Model
8142/5
General Modular Spacing
5 mm
General Number Of Poles
5
General Packaging
Carton
General Soldering Process
None
Other Color
Gray
Other Contact Base Material
Copper Silicon (CuSn)
Other Contact Surface Material
Silicone (Sn)
Other Depth
11.5 mm
Other Height
13 mm
Other Length
25 mm
Other Material Attachment Screw
Steel
Other Type Of Insulation Material
Thermoplastic
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Nominal Cross Section
2.5 mm²
Technical Data Overvoltage Category I
1000 V
Technical Data Overvoltage Category Ii
250 V
Technical Data Overvoltage Category Iii
200 V
Technical Data Rated Current
8 A
Technical Data Rated Impulse Voltage
4 kV
Technical Data Ulcsa Cross Section Canadian Standards Associatio
22-12 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-12 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
