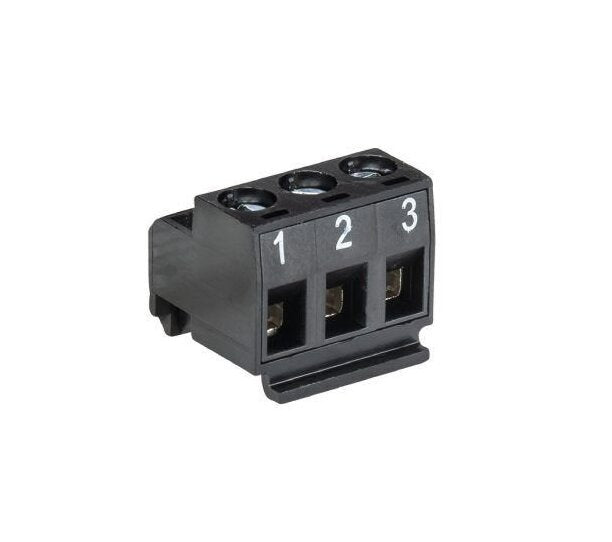

Wieland 8142 Z/3 RF OB Pluggable PCB Terminal Block
Wieland 8142 Z/3 RF OB Pluggable PCB Terminal Block
SKU:PRI-e818ab
Secure and durable Wieland 3-pole PCB Terminal Block with 5mm pitch, 2.5mm² cross-section, and 4kV impulse voltage rating. RoHS and REACH-SVHC compliant.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Wieland 8142 Z/3 RF OB Pluggable PCB Terminal Block
$12.99
Quantity: 1
Claim Your Seller Account
Wieland 8142 Z/3 RF OB Pluggable PCB Terminal Block
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 8142 Z/3 RF OB Pluggable Printed Circuit Board Terminal Block is a reliable solution featuring screw connection in rising cage technology. With a 5mm pitch and 3-pole snap-in design, this terminal block offers secure connections without marking. It is designed with a nominal cross-section of 2.5mm², rated for 3A current, and withstands high voltages up to 4kV. The thermoplastic insulation and copper-zinc contacts ensure durability and safety. Compliant with RoHS and REACH-SVHC standards, this terminal block is ideal for various applications requiring quality and performance.
Product Specifications
Classification Eclass 81 Classification
27440402
Classification Etim 40 Classification
EC002637
Classification Etim 50 Classification
EC002637
Classification Etim 60 Classification
EC002637
Classification Etim 70 Classification
EC002637
Connection Data Maximum Fine Stranded Cross Section
2.5 mm²
Connection Data Maximum Solid Cross Section
2.5 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Wire Strip Length
6 mm
General Brands
Wieland
General Connection Type
Screw Connection
General Marking
No
General Mating Direction Towards Connector
90 º
General Model
8142 Z/3 RF OB
General Modular Spacing
5 mm
General Number Of Levels
1
General Number Of Poles
3
General Packaging
Carton
General Soldering Process
None
Other Color
Gray
Other Contact Base Material
Copper Zinc (CuZn)
Other Contact Surface Material
Silicone (Sn)
Other Depth
12.6 mm
Other Height
10.7 mm
Other Length
15 mm
Other Material Attachment Screw
Steel
Other Type Of Insulation Material
Thermoplastic
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Nominal Cross Section
2.5 mm²
Technical Data Overvoltage Category I
1000 V
Technical Data Overvoltage Category Ii
320 V
Technical Data Overvoltage Category Iii
200 V
Technical Data Rated Current
3 A
Technical Data Rated Impulse Voltage
4 kV
Technical Data Ulcsa Cross Section Canadian Standards Associatio
20-14 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
20-14 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
