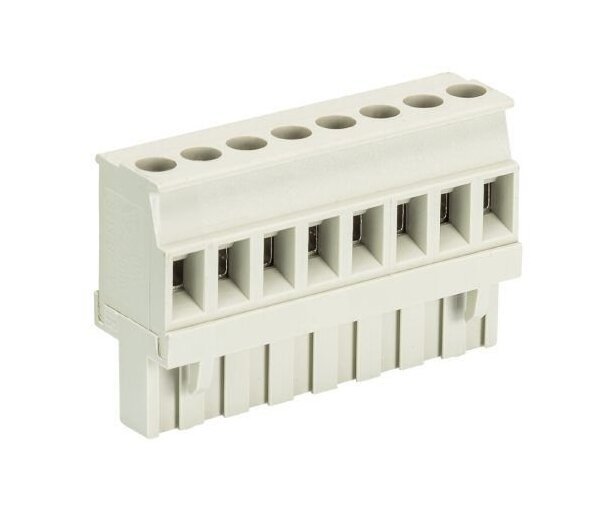

• Wieland 8213 B/2 VR OB SW PCB Connector - Image 2

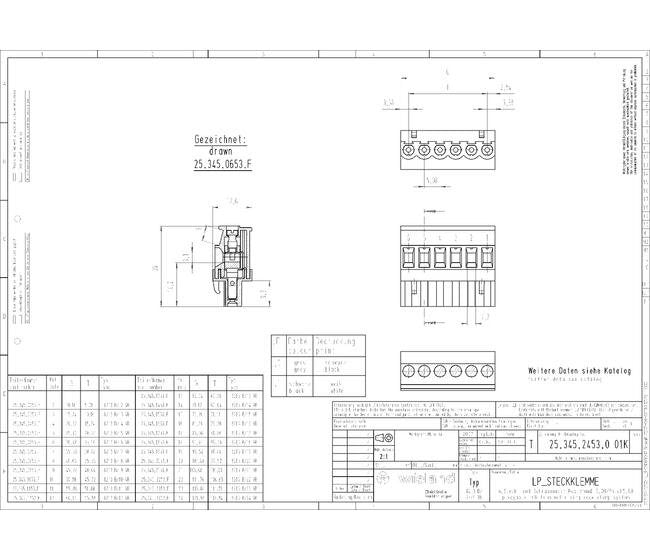

  • Wieland 8213 B/2 VR OB SW PCB Connector - Image 3
1 2
Wieland Electric Inc. →

Wieland 8213 B/2 VR OB SW PCB Connector

Wieland 8213 B/2 VR OB SW PCB Connector

PRI-5eb5ed

Discover the Wieland 8213 B/2 VR OB SW PCB Connector for secure, high-current connections. RoHS & REACH-SVHC compliant.

$15.99
$15.99
Sale

Initiate Order

Wieland 8213 B/2 VR OB SW PCB Connector

Wieland 8213 B/2 VR OB SW PCB Connector

$15.99

Quantity: 1

Claim Your Seller Account

Wieland 8213 B/2 VR OB SW PCB Connector

Wieland 8213 B/2 VR OB SW PCB Connector

$15.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Wieland 8213 B/2 VR OB SW Printed Circuit Board (PCB) Connector is a reliable 2-pole connector with a modular spacing of 5.08mm. Featuring a screw connection and wire lead design at 90°, this connector ensures secure and efficient connections. With a rated current of 12A and overvoltage protection up to 4kV, it meets high technical standards. Additionally, compliant with RoHS and REACH-SVHC standards, this connector is an environmentally friendly choice for various applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Classification Eclass 81 Classification
27440402
Classification Etim 40 Classification
EC002637
Classification Etim 50 Classification
EC002637
Classification Etim 60 Classification
EC002637
Classification Etim 70 Classification
EC002637
Connection Data Maximum Fine Stranded Cross Section
2.5 mm²
Connection Data Maximum Solid Cross Section
2.5 mm²
Connection Data Minimum Fine Stranded Cross Section
0.14 mm²
Connection Data Minimum Solid Cross Section
0.14 mm²
Connection Data Wire Strip Length
6 mm
General Brands
Wieland
General Connection Type
Screw Connection
General Fastening
None
General Marking
No
General Mating Direction Towards Connector
90 º
General Model
8213 B/2 VR OB SW
General Modular Spacing
5.08 mm
General Number Of Poles
2
General Packaging
Carton
General Soldering Process
None
Other Color
Gray
Other Contact Base Material
Copper Silicone (CuSn)
Other Contact Surface Material
Silicone (Sn)
Other Depth
12.6 mm
Other Height
26 mm
Other Length
10.16 mm
Other Material Attachment Screw
Copper Silicone (CuSn) | Steel
Other Type Of Insulation Material
Thermoplastic
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Nominal Cross Section
2.5 mm²
Technical Data Overvoltage Category I
1000 V
Technical Data Overvoltage Category Ii
400 V
Technical Data Overvoltage Category Iii
250 V
Technical Data Rated Impulse Voltage
4 kV
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
