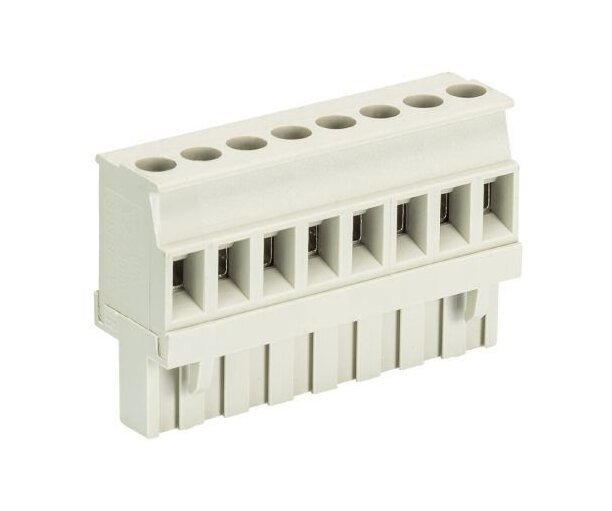

Wieland 8213 B/4 VR OB GN PCB Connector
Wieland 8213 B/4 VR OB GN PCB Connector
SKU:PRI-687b31
Explore the Wieland 8213 B/4 VR OB GN PCB Connector for reliable and compliant PCB connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 8213 B/4 VR OB GN PCB Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 8213 B/4 VR OB GN PCB Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 8213 B/4 VR OB GN Printed Circuit Board (PCB) Connector offers a versatile solution for your connectivity needs. Featuring a 5.08mm pitch, screw connection, 4-pole design with a 90-degree wire lead towards coding, this connector ensures secure and stable connections. With a robust construction and compliance with standards like RoHS and REACH-SVHC, this connector is ideal for industrial and institutional applications. Its technical specifications include a 2.5 mm² nominal cross-section, 12 A rated current, and impressive overvoltage ratings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27440402
Classification Etim 40 Classification
EC002637
Classification Etim 50 Classification
EC002637
Classification Etim 60 Classification
EC002637
Classification Etim 70 Classification
EC002637
Connection Data Maximum Fine Stranded Cross Section
2.5 mm²
Connection Data Maximum Solid Cross Section
2.5 mm²
Connection Data Minimum Fine Stranded Cross Section
0.14 mm²
Connection Data Minimum Solid Cross Section
0.14 mm²
Connection Data Wire Strip Length
6 mm
General Brands
Wieland
General Connection Type
Screw Connection
General Fastening
None
General Marking
No
General Mating Direction Towards Connector
90 º
General Model
8213 B/4 VR OB GN
General Modular Spacing
5.08 mm
General Number Of Poles
4
General Packaging
Carton
General Soldering Process
None
Other Color
Gray
Other Contact Base Material
Copper Silicone (CuSn)
Other Contact Surface Material
Silicone (Sn)
Other Depth
12.6 mm
Other Height
26 mm
Other Length
20.32 mm
Other Material Attachment Screw
Copper Silicone (CuSn) | Steel
Other Type Of Insulation Material
Thermoplastic
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Nominal Cross Section
2.5 mm²
Technical Data Overvoltage Category I
1000 V
Technical Data Overvoltage Category Ii
400 V
Technical Data Overvoltage Category Iii
250 V
Technical Data Rated Impulse Voltage
4 kV
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
