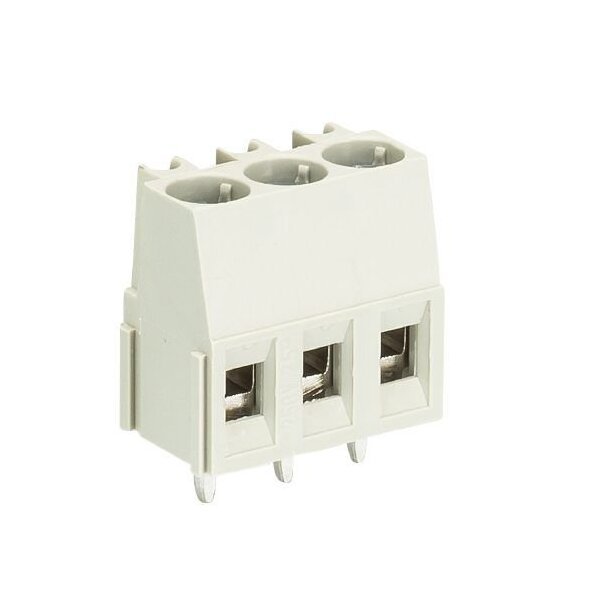

Wieland 8291/3 OB Printed Circuit Board (PCB) Terminal Block
Wieland 8291/3 OB Printed Circuit Board (PCB) Terminal Block
SKU:PRI-cdd4c0
High-quality 3-pole PCB terminal block with 5.08mm spacing, 16A current, and RoHS compliant
Regular price
$8.99
Regular price
Sale price
$8.99
Unit price
per
Initiate Order
Wieland 8291/3 OB Printed Circuit Board (PCB) Terminal Block
$8.99
Quantity: 1
Claim Your Seller Account
Wieland 8291/3 OB Printed Circuit Board (PCB) Terminal Block
$8.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 8291/3 OB Printed Circuit Board (PCB) Terminal Block is a high-quality 3-pole terminal block designed for seamless connectivity. With a modular spacing of 5.08mm and a screw connection type, this terminal block ensures secure and reliable connections. It features a rated current of 16A, nominal cross-section of 2.5mm², and compatibility with wave soldering. The integrated test socket, overvoltage protection, and RoHS compliance make it ideal for both consumer electronics and institutional applications.
Product Specifications
Classification Eclass 81 Classification
27440401
Classification Etim 40 Classification
EC002643
Classification Etim 50 Classification
EC002643
Classification Etim 60 Classification
EC002643
Classification Etim 70 Classification
EC002643
Connection Data Maximum Fine Stranded Cross Section
2.5 mm²
Connection Data Maximum Solid Cross Section
4 mm²
Connection Data Minimum Fine Stranded Cross Section
0.14 mm²
Connection Data Minimum Solid Cross Section
0.14 mm²
General Conductor To Circuit Board
180 º
General Connection Type
Screw Connection
General Insulation Plate
No
General Integrated Test Socket
Yes
General Marking
No
General Modular Spacing
5.08 mm
General Number Of Levels
1
General Number Of Poles
3
General Packaging
Carton
General Retaining Pins
No
General Soldering Process
Wave Soldering
Other Color
Gray
Other Contact Base Material
E-Copper (E-Cu)
Other Contact Surface Material
Silicone (Sn)
Other Depth
9.5 mm
Other Height
15 mm
Other Length
16.09 mm
Other Material Attachment Screw
Steel
Other Tightening Torque Note
If soldered additional mechanical fixing necessary
Other Type Of Insulation Material
Thermoplastic
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Technical Data Overvoltage Category I
1000 V
Technical Data Overvoltage Category Ii
690 V
Technical Data Overvoltage Category Iii
250 V
Technical Data Rated Impulse Voltage
4 kV
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
