Wieland 9700 A/6 S35 Feed-Through Terminal Block
Wieland 9700 A/6 S35 Feed-Through Terminal Block
SKU:DIN-348225
High-quality feed-through terminal block for DIN rail with secure screw connection, ideal for tight spaces.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 9700 A/6 S35 Feed-Through Terminal Block
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 9700 A/6 S35 Feed-Through Terminal Block
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

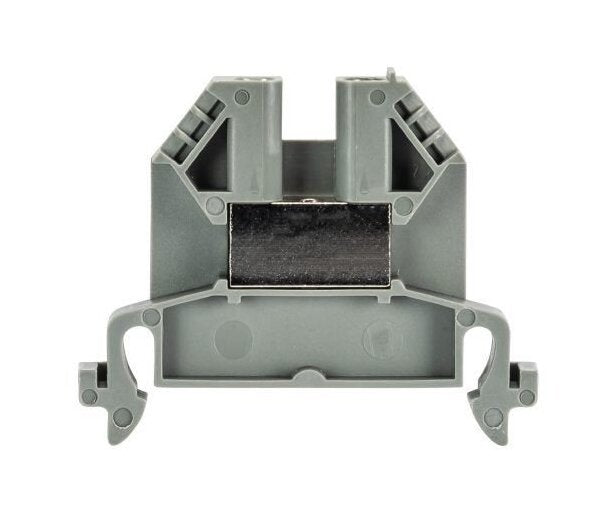

The Wieland 9700 A/6 S35 Feed-Through Terminal Block is a high-performance DIN rail terminal block featuring a screw connection for secure mounting on TS 35. With a nominal cross section of 4 mm² and a maximum rated voltage of 800 V, this terminal block is designed for reliable electrical installations. It meets stringent industry standards such as UL94 V2 for insulation inflammability, ensuring safety and durability in diverse applications. The compact design, with a width of 6 mm and a length of 46.6 mm, makes it ideal for space-constrained environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
5.5 mm²
Connection Data Wire Strip Length
9 mm
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
No
General Inflammability Class Of Insulation Material According Wi
V2
General Insulating Housing
PA66
General Model
9700 A/6 S35
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
6 mm
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Closing Plate Required
Yes
Technical Data Length
46.6 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
32 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
22-10 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
