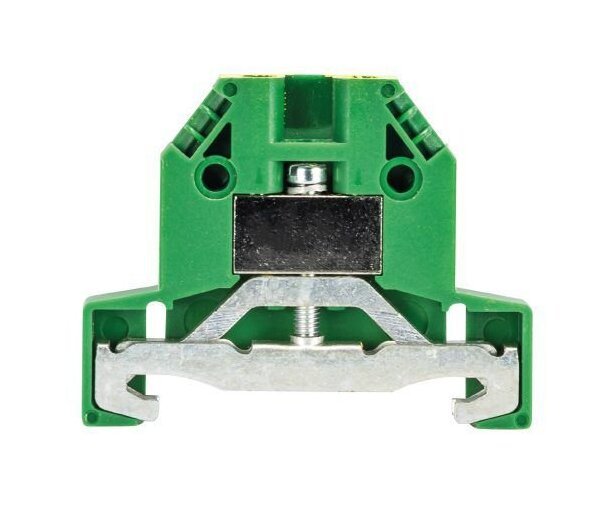

Wieland 9700 Earth Terminal Block
Wieland 9700 Earth Terminal Block
SKU:DIN-43057e
Reliable Wieland Earth Terminal Block for secure grounding on TS 35 DIN rails. Nominal cross section: 4mm², width: 6mm, green/yellow color.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
Wieland 9700 Earth Terminal Block
$19.99
Quantity: 1
Claim Your Seller Account
Wieland 9700 Earth Terminal Block
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 9700 A/6 SL 2 S35 Earth Terminal Block is a high-quality product designed for reliable grounding in electrical installations. With a nominal cross section of 4mm² and a width of 6mm, this terminal block ensures secure connections on TS 35 DIN rails. The green/yellow color indicates the grounding purpose, and its insulating housing is PA66 rated V2 for flame resistance. Rated for 8 kV impulse voltage and meeting RoHS compliance, this terminal block is a durable and safe choice for both consumer and institutional applications.
Product Specifications
Classification Eclass 81 Classification
27141141
Classification Etim 30 Classification
EC000901
Classification Etim 40 Classification
EC000901
Classification Etim 50 Classification
EC000901
Classification Etim 60 Classification
EC000901
Classification Etim 70 Classification
EC000901
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Torque Conductor Mounting
0.5 N·m
Connection Data Torque Rail Mounting
0.5 N·m
Connection Data Wire Strip Length
9 mm
General Brands
Wieland
General Color
Green/Yellow
General Inflammability Class Of Insulation Material According Wi
V2
General Insulating Housing
PA66
General Model
9700 A/6 SL 2 S35
General Mounting Method
DIN Rail (Top Hat Rail)
General Mounting Size
35 x 7.5 mm
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
6 mm
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Closing Plate Required
Yes
Technical Data Length
48.5 mm
Technical Data Pollution Degree
3
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
22-10 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
