Wieland 9700 Earth Terminal Block
Wieland 9700 Earth Terminal Block
SKU:DIN-50094e
High-quality Wieland Earth Terminal Block with 10 mm² nominal cross-section, green/yellow color, and PA66 insulating housing for secure electrical connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 9700 Earth Terminal Block
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 9700 Earth Terminal Block
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

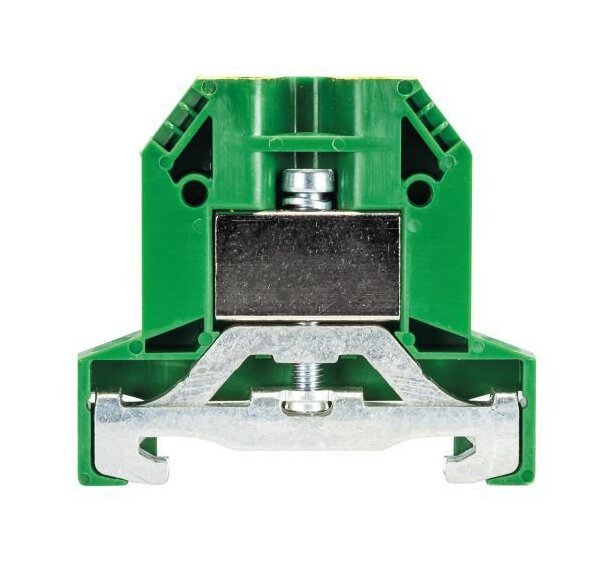

The Wieland 9700 A/8 SL 2 S35 Earth Terminal Block is a high-quality ground DIN rail terminal block designed for optimal performance in electrical installations. With a nominal cross-section of 10 mm² and screw connections, this terminal block ensures secure and reliable connections. The terminal block is color-coded in green and yellow for easy identification and features an insulating housing made of PA66, meeting industry standards for durability and safety. Compliant with RoHS regulations, this terminal block is a reliable choice for both consumer and institutional buyers.
Product Specifications
Classification Eclass 81 Classification
27141141
Classification Etim 30 Classification
EC000901
Classification Etim 40 Classification
EC000901
Classification Etim 50 Classification
EC000901
Classification Etim 60 Classification
EC000901
Classification Etim 70 Classification
EC000901
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
10 mm²
Connection Data Maximum Solid Cross Section
10 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Torque Conductor Mounting
1.2 N·m
Connection Data Torque Rail Mounting
1.2 N·m
Connection Data Wire Strip Length
11 mm
General Brands
Wieland
General Color
Green/Yellow
General Inflammability Class Of Insulation Material According Wi
V2
General Insulating Housing
PA66
General Model
9700 A/8 SL 2 S35
General Mounting Method
DIN Rail (Top Hat Rail)
General Mounting Size
35 x 7.5 mm
General Nominal Cross Section
10 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
8 mm
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Closing Plate Required
Yes
Technical Data Length
53 mm
Technical Data Pollution Degree
3
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
18-8 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
