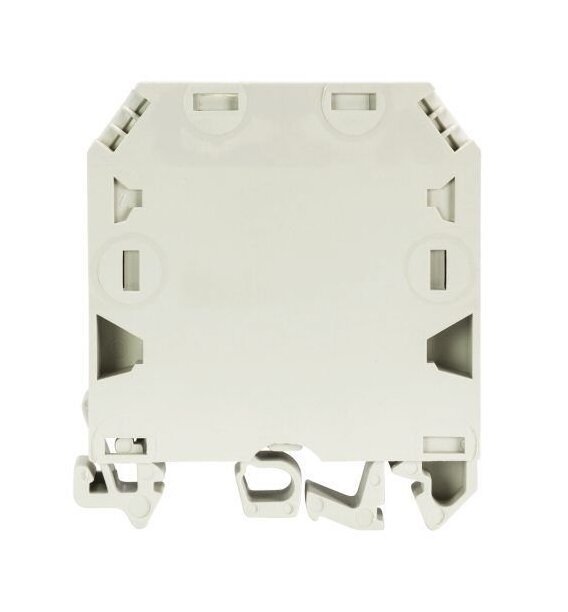

Wieland 9786U/12/V0 Function Terminal Block - Gray
Wieland 9786U/12/V0 Function Terminal Block - Gray
Reliable Wieland Function Terminal Block in gray, ideal for DIN rail mountings. Meets V0 inflammability rating & 4 mm² cross-section.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Wieland 9786U/12/V0 Function Terminal Block - Gray
$25.99
Quantity: 1
Claim Your Seller Account
Wieland 9786U/12/V0 Function Terminal Block - Gray
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 9786U/12/V0 Function Terminal Block is a diode terminal block with a screw connection designed for mounting on TS 35 and TS 32 rails. With a nominal cross-section of 4 mm², two levels, and two clamp positions per level, this terminal block offers reliable performance. It features a width of 12mm and an insulating housing made of PA666. Additionally, it meets stringent industry standards including a V0 inflammability rating according to UL94, making it ideal for various electrical installations.
Product Specifications
Classification Eclass 81 Classification
27141127
Classification Etim 30 Classification
EC000903
Classification Etim 40 Classification
EC000903
Classification Etim 50 Classification
EC000903
Classification Etim 60 Classification
EC000903
Classification Etim 70 Classification
EC000903
Classification Rohs Conformity Status
Compliant with Exceptions
Classification Rohs Exceptions
III-6(c)
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
2.5 mm²
Connection Data Maximum Solid Cross Section
2.5 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Wire Strip Length
9 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
9786U/12/V0
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
2
General Terminal Blocks For Electrical Installations
No
General Type Of Component
Free Configurable
General Width Grid Dimension
12 mm
Note Remark To Maximum Rated Voltage
Note Inserted Parts
Note Remark To Rated Current
Note Inserted Parts
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Technical Data Closing Plate Required
No
Technical Data Length
51.8 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
24 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Torque Conductor Mounting
0.5 N·m
