Wieland Aluminum 32-Pole Multipole Connector Housing M32
Wieland Aluminum 32-Pole Multipole Connector Housing M32
SKU:IND-0dd9d8
Durable aluminum 32-pole connector housing with double locking levers and M32 threaded hole.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Wieland Aluminum 32-Pole Multipole Connector Housing M32
$89.99
Quantity: 1
Claim Your Seller Account
Wieland Aluminum 32-Pole Multipole Connector Housing M32
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

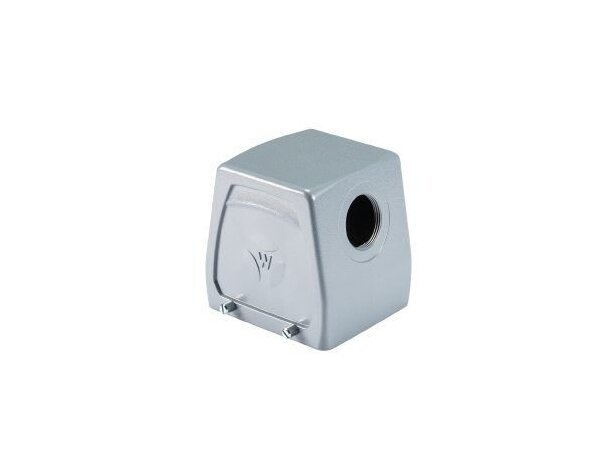

The Wieland Aluminum 32-Pole Multipole Connector Housing M32 is a heavy-duty industrial connector housing designed for durability and reliability. Constructed from high-quality aluminum with a gray powder coating, this connector housing ensures protection and longevity in industrial settings. Featuring double locking levers for secure connections, threaded hole M32 on the right side, and a low-profile design, this housing is ideal for demanding applications. With a wide temperature range from -40°C to 120°C and compliance with RoHS and REACH-SVHC standards, it meets stringent regulatory requirements for safety and environmental responsibility.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
Other
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
HOOD BAS GOT GA 32 M32 50 A1
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
Sideways
Model Construction
32
Model Emc Version
No
Model Height
94 mm
Model Hinged Lid
No
Model Length
94 mm
Model Locking Mechanism
Double Locking Levers
Model Thread Size M
32
Model Type
Male
Model Type Of Cable
Thread
Model Width
83 mm
Model With Cable Screw Gland
No
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Specifications Number Of Poles
32
Specifications Profile
Low
