Wieland Aluminum Multi-Pole Industrial Connector Housing
Wieland Aluminum Multi-Pole Industrial Connector Housing
SKU:IND-29f708
Durable Wieland Aluminum Industrial Connector Housing for secure 16-pole connections with UV resistance and wide temperature range.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Wieland Aluminum Multi-Pole Industrial Connector Housing
$69.99
Quantity: 1
Claim Your Seller Account
Wieland Aluminum Multi-Pole Industrial Connector Housing
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

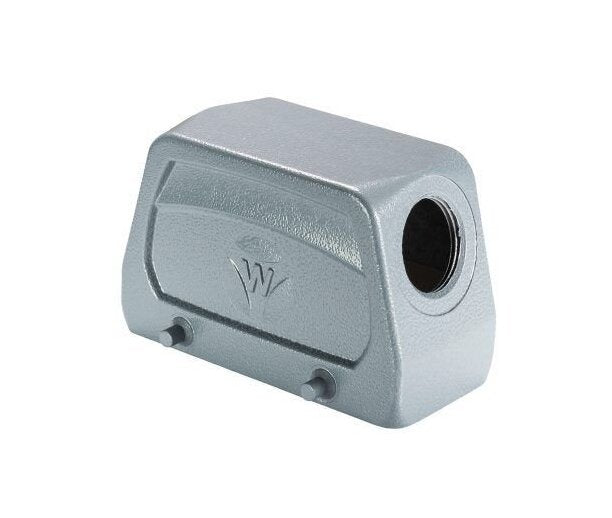

The Wieland HOOD BAS GOT GA 16 M25 A1 Multi-Pole Heavy-Duty Industrial Connector Housing is expertly crafted from durable aluminum with a gray powder coating, ensuring resilience in demanding industrial environments. This 16-pole connector housing features a double locking lever for secure connections, a threaded M25 hole for easy cable entry, and UV resistance for outdoor use. With a low-profile design and operating temperature range from -40°C to 120°C, it offers reliability and longevity for industrial applications.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
Other
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
HOOD BAS GOT GA 16 M25 A1
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
Sideways
Model Construction
16
Model Emc Version
No
Model Height
60 mm
Model Hinged Lid
No
Model Length
94 mm
Model Locking Mechanism
Double Locking Levers
Model Thread Size M
25
Model Type
Male
Model Type Of Cable
Thread
Model Width
56 mm
Model With Cable Screw Gland
No
Product Compliance Reach Svhc Conformity Status
Compliant
Specifications Number Of Poles
24
Specifications Profile
Low
