Wieland Aluminum Multi-Pole Industrial Connector Housing - 16 Poles
Wieland Aluminum Multi-Pole Industrial Connector Housing - 16 Poles
SKU:IND-331bf1
Enhance industrial connectivity with the Wieland Aluminum Multi-Pole Connector Housing. Durable, IP54-rated, and RoHS compliant for reliable performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland Aluminum Multi-Pole Industrial Connector Housing - 16 Poles
$29.99
Quantity: 1
Claim Your Seller Account
Wieland Aluminum Multi-Pole Industrial Connector Housing - 16 Poles
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

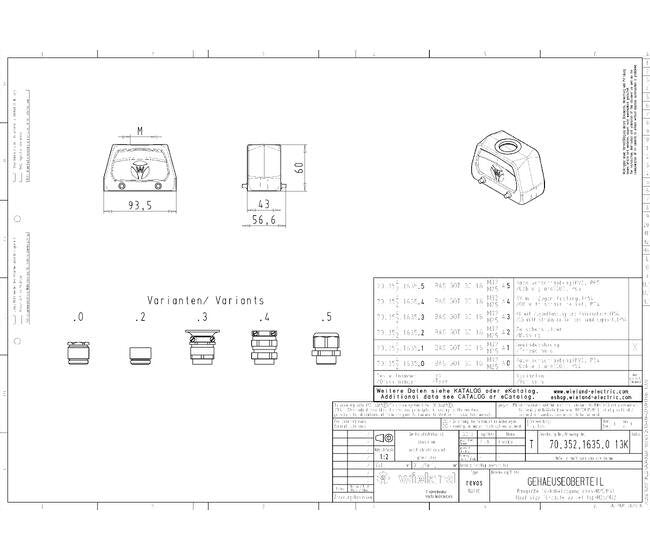

Upgrade your industrial connectivity with the Wieland HOOD BAS GOT GC 16 M25 A0 Multi-Pole Heavy-Duty Industrial Connector Housing. Constructed from durable aluminum with IP54 protection, this housing features double locking levers, a cable gland M25, and UV resistance. With a temperature range from -40°C to 120°C, it ensures reliable performance in diverse environments. Measuring 94mm x 56mm x 60mm, this low-profile connector housing is ideal for secure cable connections in industrial settings. Compliant with RoHS standards, it's a reliable choice for quality and sustainability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC0004
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
IP54
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
HOOD BAS GOT GC 16 M25 A0
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
Above
Model Construction
16
Model Emc Version
No
Model Height
60 mm
Model Hinged Lid
No
Model Length
94 mm
Model Locking Mechanism
Double Locking Levers
Model Thread Size M
25
Model Type
Male
Model Type Of Cable
Gland nut
Model Width
56 mm
Model With Cable Screw Gland
Yes
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Specifications Number Of Poles
16
Specifications Profile
Low
