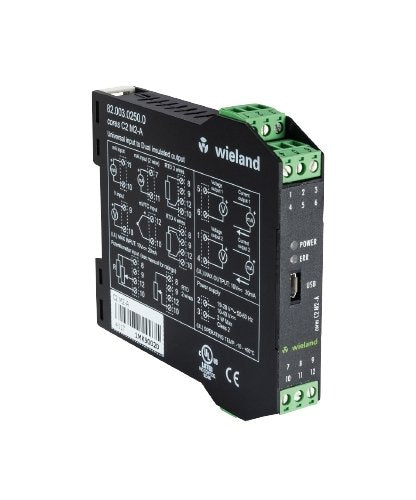

Wieland Analog Isolation Amplifier C2 M2-A Converter
Wieland Analog Isolation Amplifier C2 M2-A Converter
SKU:ANA-2eb448
Enhance analog conversion with Wieland Isolation Amplifier C2 M2-A: 4-way isolation, high accuracy, quick response time, and compact design. Compliant with RoHS, REACH-SVHC, and UL standards.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Wieland Analog Isolation Amplifier C2 M2-A Converter
$189.99
Quantity: 1
Claim Your Seller Account
Wieland Analog Isolation Amplifier C2 M2-A Converter
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your analog conversion capabilities with the Wieland Analog Isolation Amplifier C2 M2-A. This advanced converter features 4-way potential isolation, adjustable input range, galvanic isolation, high accuracy (< 0.1 %), 14-bit resolution, and a quick reaction time of less than 11 ms. With a wide range of input and output options, screw clamp pluggable connection type, and compact dimensions, this converter is a versatile solution for various applications. Moreover, it complies with RoHS and REACH-SVHC standards, UL listed, ensuring top-notch quality and performance.
Product Specifications
Classification Eclass 81 Classification
27210120
Classification Etim 40 Classification
EC002653
Classification Etim 50 Classification
EC002653
Classification Etim 60 Classification
EC002653
Classification Etim 70 Classification
EC002653
Classification Etim 80 Classification
EC002653
Classification Etim 90 Classification
EC002653
Dimensions Depth
112 mm
Dimensions Height
100 mm
Dimensions Width
17.5 mm
Product Compliance Certificationapproval
Underwriters Laboratories (UL) (Canada) (United States) (cULus) Listed
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Accuracy
< 0.1 %
Technical Data Alternatingdirect Current Acdc Supply Voltage
24 V
Technical Data Brands
Wieland
Technical Data Connection Type
Screw Clamp Pluggable
Technical Data Direct Current Dc Active Or Passive Input Current
0 to 20 mA
Technical Data Direct Current Dc Active Or Passive Output Curren
0 to 20 mA | 4 to 20 mA
Technical Data Direct Current Dc Input Voltage Range Adjustable
0 to 10 V
Technical Data Direct Current Dc Output Voltage Range Adjustable
0 to 10 V
Technical Data Electrical Isolation Voltage
1.5 kV
Technical Data Galvanic Isolation
Yes
Technical Data Galvanic Isolation Type
4 Way
Technical Data Input Range Adjustable
1 to 100 kOhm Potentiometer | 2, 3, 4 Wire | 500 Ohm to 25 kOhm Rheostat | Pt100, Pt500, Pt1000, Ni100
Technical Data Isolation Voltage
1500 V
Technical Data Maximum Alternating Current Ac Input Voltage
28 V
Technical Data Maximum Direct Current Dc Input Voltage
40 V
Technical Data Maximum Operating Temperature
65 ºC
Technical Data Minimum Alternating Current Ac Input Voltage
19 V
Technical Data Minimum Direct Current Dc Input Voltage
10 V
Technical Data Minimum Operating Temperature
-10 ºC
Technical Data Model
C2 M2-A
Technical Data Power Consumption
< 2 W
Technical Data Reaction Time
<11 ms
Technical Data Resolution
14 bits
Technical Data Type Of Thermocouple
B | E | J | K | N | R | S | T
Technical Data Wire Range Solidfine Stranded
0.14 to 2.5 mm²
