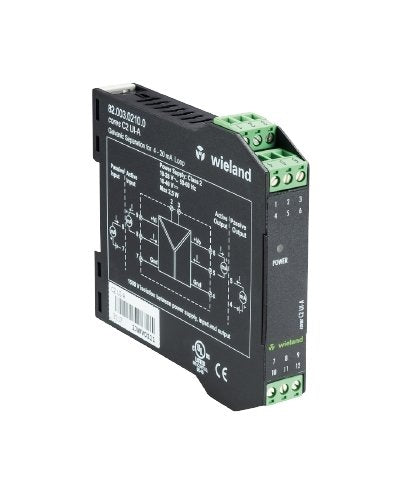

Wieland Analog Isolation Amplifier C2 UI-A Converter
Wieland Analog Isolation Amplifier C2 UI-A Converter
SKU:ANA-9ee17f
The Wieland Analog Isolation Amplifier C2 UI-A Converter offers 3-way galvanic isolation, adjustable current ranges, and UL compliance.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Wieland Analog Isolation Amplifier C2 UI-A Converter
$249.99
Quantity: 1
Claim Your Seller Account
Wieland Analog Isolation Amplifier C2 UI-A Converter
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your electrical systems with the Wieland Analog Isolation Amplifier C2 UI-A Converter. This 3-way galvanic isolation device features adjustable input/output current ranges of 0 to 20 mA, ensuring precise measurements with 0.2% accuracy. With a reaction time of <40 ms, versatile voltage inputs, and compact dimensions, this converter is ideal for various industrial applications. It complies with RoHS and REACH-SVHC standards and holds UL certifications, guaranteeing quality and safety.
Product Specifications
Classification Eclass 81 Classification
27210120
Classification Etim 40 Classification
EC002653
Classification Etim 50 Classification
EC002653
Classification Etim 60 Classification
EC002653
Classification Etim 70 Classification
EC002653
Classification Etim 80 Classification
EC002653
Classification Etim 90 Classification
EC002653
Dimensions Depth
112 mm
Dimensions Height
100 mm
Dimensions Width
17.5 mm
Product Compliance Certificationapproval
Underwriters Laboratories (UL) (Canada) (United States) (cULus) Listed
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Accuracy
0.2 %
Technical Data Alternatingdirect Current Acdc Supply Voltage
24 V
Technical Data Brands
Wieland
Technical Data Connection Type
Screw Clamp Pluggable
Technical Data Direct Current Dc Active Or Passive Input Current
0 to 20 mA
Technical Data Direct Current Dc Active Or Passive Output Curren
0 to 20 mA
Technical Data Electrical Isolation Voltage
1.5 kV
Technical Data Galvanic Isolation
Yes
Technical Data Galvanic Isolation Type
3 Way
Technical Data Isolation Voltage
1500 V
Technical Data Maximum Alternating Current Ac Input Voltage
28 V
Technical Data Maximum Direct Current Dc Input Voltage
40 V
Technical Data Maximum Operating Temperature
60 ºC
Technical Data Minimum Alternating Current Ac Input Voltage
19 V
Technical Data Minimum Direct Current Dc Input Voltage
9 V
Technical Data Minimum Operating Temperature
-20 ºC
Technical Data Model
C2 UI-A
Technical Data Power Consumption
< 2.5 W
Technical Data Reaction Time
<40 ms
Technical Data Wire Range Solidfine Stranded
0.14 to 2.5 mm²
