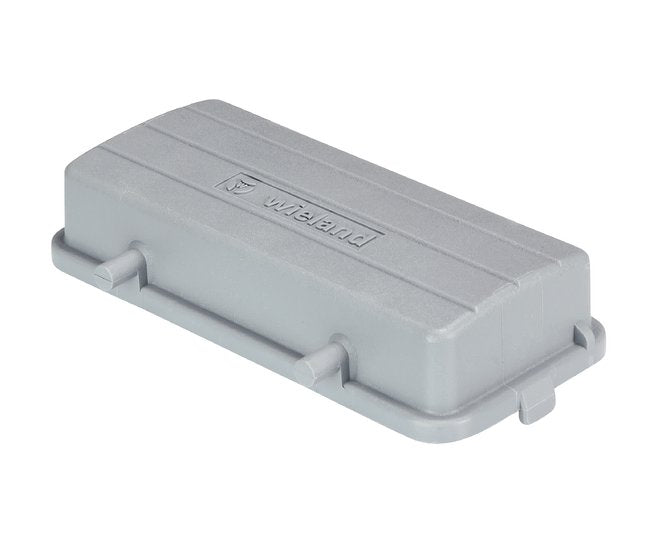

Wieland BAS AD DA 24 Protective Cover
Wieland BAS AD DA 24 Protective Cover
SKU:IND-fa2454
Ensure connector safety with the Wieland BAS AD DA 24 Protective Cover. IP65 rated, V0 inflammability class. RoHS & REACH-SVHC compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland BAS AD DA 24 Protective Cover
$29.99
Quantity: 1
Claim Your Seller Account
Wieland BAS AD DA 24 Protective Cover
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland BAS AD DA 24 Protective Cover is designed to provide essential protection for industrial multipole connectors, ensuring optimal performance in challenging environments. With a high degree of protection (IP65) and V0 inflammability class according to UL94 standards, this gray plastic cover is built to withstand temperatures ranging from -40°C to 120°C. The double locking levers offer secure closure without the need for additional gaskets or clamping mechanisms. Compliant with RoHS and REACH-SVHC regulations, this cover ensures both safety and environmental responsibility.
Product Specifications
Classification Eclass 81 Classification
27440208
Classification Etim 30 Classification
EC002314
Classification Etim 40 Classification
EC002314
Classification Etim 50 Classification
EC002314
Classification Etim 60 Classification
EC002314
Classification Etim 70 Classification
EC002314
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
IP65
General Housing Material
Plastic
General Inflammability Class Of Insulation Material According Wi
V0
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
BAS AD DA 24
General Surface
Untreated
Model Construction
24
Model Cover Attachment Clamping
No
Model Interlock
No
Model Locking Mechanism
Double Locking Levers
Model Material Locking Lever
None
Model With Loop
No
Model With Ring Lug
No
Model With Sealing
No
Model With Tether Cord
No
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
