Wieland BAS BUCK 46 50 PC Industrial Connector Insert
Wieland BAS BUCK 46 50 PC Industrial Connector Insert
SKU:IND-28b568
High-quality 46-pole industrial connector insert with gold/silver-plated contacts. UL/CSA rated for 16A, 500V. Durable and reliable performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland BAS BUCK 46 50 PC Industrial Connector Insert
$29.99
Quantity: 1
Claim Your Seller Account
Wieland BAS BUCK 46 50 PC Industrial Connector Insert
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

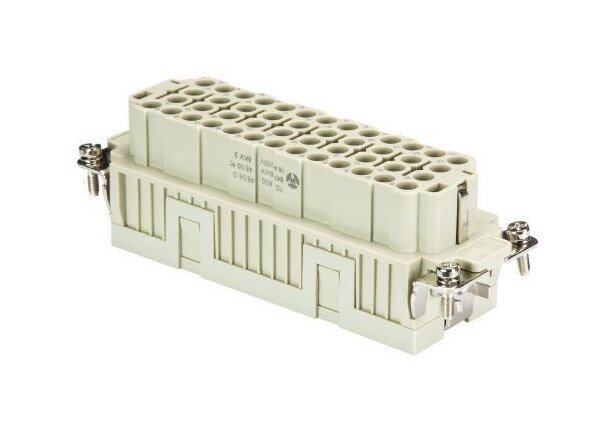

The Wieland BAS BUCK 46 50 PC Industrial Connector Insert is a high-quality female insert designed for industrial multipole connectors. With 46 poles and a polycarbonate insert, this connector is rated for a current of 16A and a voltage of 500V. The contacts are gold-plated or silver-plated, ensuring reliable conductivity. This connector meets stringent technical data standards including UL and CSA ratings, with copper alloy contacts to minimize contact resistance. Suitable for a wide temperature range from -40ºC to 120ºC, this connector is built to perform in diverse industrial environments.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Crimp
Connection Data Number Of Poles
46
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
46
Connection Data With Wire Protection
No
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠1.5 mΩ
Contacts Surface
Silver And/or Gold Plated
Contacts Wire Strip Length
7 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
FEMALE INSERT BAS BUCK 46 50 PC
General Modular Version
No
General Pollution Degree
3
General Type
Female Insert
Model With Housing
No
Product Compliance Reach Svhc Conformity Status
Compliant
Screws Head Design Ground Conductor Screws
H2/1.2-1.6 N·m
Screws Head Design Mounting Screws
H1/0.5-0.7 N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
500 V
Technical Data Din En 61984 Nominal Current
16 A
Technical Data Din En 61984 Nominal Voltage
500 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Flexible Wire Conductor Cross Section
20-12 AWG
Technical Data Ulcsa Maximum Flexible Wire Conductor Cross Secti
4 mm²
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
Technical Data Ulcsa Minimum Flexible Wire Conductor Cross Secti
0.5 mm²
Technical Data Ulcsa Rated Current According Canadian Standards
16 A
