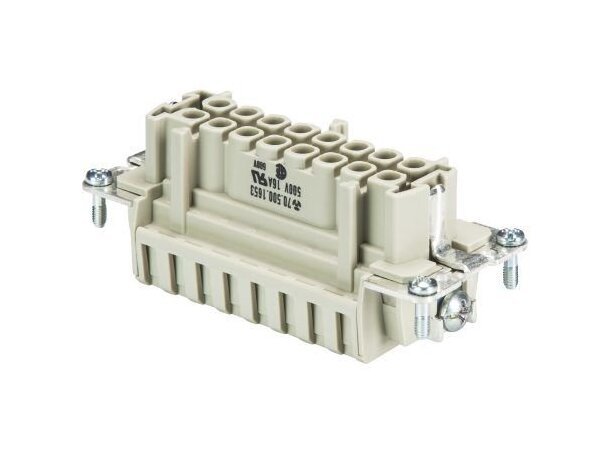

Wieland BAS BUF 16 2,5 50 Industrial Connector Insert – Female Insert
Wieland BAS BUF 16 2,5 50 Industrial Connector Insert – Female Insert
SKU:IND-b6791b
High-quality Wieland 16-pole Industrial Connector Insert for secure and efficient connectivity in industrial applications.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Wieland BAS BUF 16 2,5 50 Industrial Connector Insert – Female Insert
$34.99
Quantity: 1
Claim Your Seller Account
Wieland BAS BUF 16 2,5 50 Industrial Connector Insert – Female Insert
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland BAS BUF 16 2,5 50 Industrial Connector Insert is a high-quality 16-pole female insert designed for industrial multipole connectors. Rated at 16A with a voltage of 500V, this connector boasts tin-plated contacts for reliable conductivity. With a spring clamp connection type and wire protection, it offers a secure and efficient solution for various industrial applications. The connector is UL/CSA rated and complies with RoHS and REACH-SVHC regulations, ensuring both performance and environmental responsibility.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Spring Clamp Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
2.5 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
0.5 mm²
Connection Data Number Of Poles
16
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
16
Connection Data With Wire Protection
Yes
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠3 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
7 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V2
General Mating Cycles
500
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
FEMALE INSERT BAS BUF 16 2,5 50
General Modular Version
No
General Pollution Degree
3
General Type
Female Insert
Model With Housing
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Screws Head Design Ground Conductor Screws
H2/1.2-1.6 N·m
Screws Head Design Mounting Screws
H1/0.5-0.7 N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
500 V
Technical Data Din En 61984 Nominal Current
16 A
Technical Data Din En 61984 Nominal Voltage
500 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Flexible Wire Conductor Cross Section
26-12 AWG
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
