Wieland BAS BUF 6 2.5 50 Industrial Connector Insert
Wieland BAS BUF 6 2.5 50 Industrial Connector Insert
SKU:IND-ec57d5
Premium 6-pole female industrial connector insert with 16A current, 500V voltage, and tin-plated contacts. Durable, reliable, and compliant with international standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland BAS BUF 6 2.5 50 Industrial Connector Insert
$29.99
Quantity: 1
Claim Your Seller Account
Wieland BAS BUF 6 2.5 50 Industrial Connector Insert
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

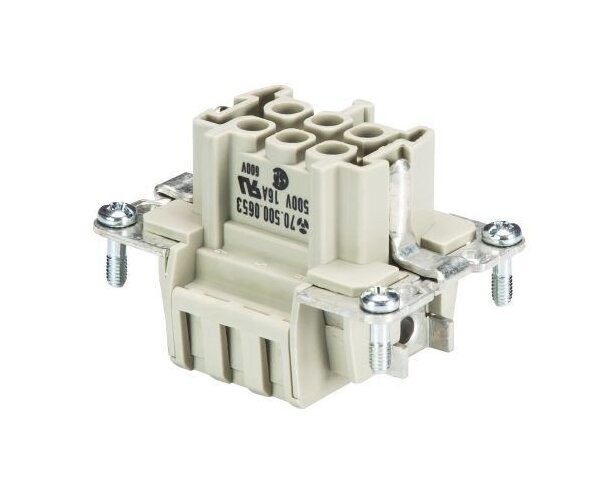

The Wieland BAS BUF 6 2.5 50 Industrial Connector Insert is a premium quality 6-pole female insert designed for industrial applications. With a rated current of 16A and rated voltage of 500V, this connector insert features tin-plated contacts for enhanced conductivity and durability. It offers a spring clamp connection type, 500 mating cycles, and a temperature range from -40°C to 120°C. The copper alloy contacts with silver-plated surface ensure low contact resistance (≤ 3 mΩ) and a wire strip length of 7mm. This connector insert complies with various international standards for safety and performance, making it a reliable choice for industrial multipole connector needs.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Spring Clamp Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
2.5 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
0.5 mm²
Connection Data Number Of Poles
6
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
6
Connection Data With Wire Protection
Yes
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠3 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
7 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V2
General Mating Cycles
500
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
FEMALE INSERT BAS BUF 6 2,5 50
General Modular Version
No
General Pollution Degree
3
General Type
Female Insert
Model With Housing
No
Screws Head Design Ground Conductor Screws
H2/1.2-1.6 N·m
Screws Head Design Mounting Screws
H1/0.5-0.7 N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
500 V
Technical Data Din En 61984 Nominal Current
16 A
Technical Data Din En 61984 Nominal Voltage
500 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Flexible Wire Conductor Cross Section
26-12 AWG
Technical Data Ulcsa Maximum Flexible Wire Conductor Cross Secti
2.5 mm²
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
Technical Data Ulcsa Minimum Flexible Wire Conductor Cross Secti
0.14 mm²
Technical Data Ulcsa Rated Current According Canadian Standards
16 A
Technical Data Ulcsa Rated Current According Underwriters Labora
16 A
