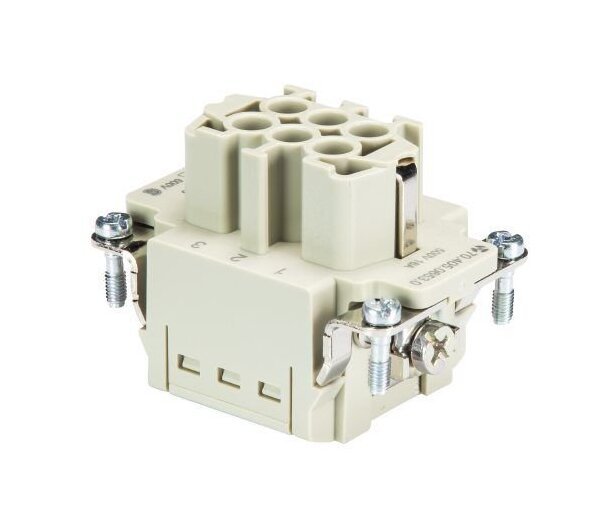

Wieland BAS BUP 6 2.5 50 AG Industrial Connector Insert
Wieland BAS BUP 6 2.5 50 AG Industrial Connector Insert
SKU:IND-5cb18d
Reliable Wieland 6-pole industrial connector insert with silver-plated contacts for secure plug-in connection.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland BAS BUP 6 2.5 50 AG Industrial Connector Insert
$24.99
Quantity: 1
Claim Your Seller Account
Wieland BAS BUP 6 2.5 50 AG Industrial Connector Insert
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland BAS BUP 6 2.5 50 AG Industrial Connector Insert is a high-quality 6-pole female insert designed to meet the demands of industrial applications. Rated for 16A and 500V, this connector features silver-plated contacts for reliable conductivity. With a durable gray housing and a temperature range of -40°C to 120°C, it ensures stable performance in harsh environments. The copper alloy contacts with silver plating offer low resistance (< 5mΩ) and a wire strip length of 9mm. Ideal for industrial multipole connectors, this insert provides a secure and efficient plug-in connection with 500 mating cycles.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Plug-In Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
2.5 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
0.5 mm²
Connection Data Number Of Poles
6
Connection Data Total Number Of Poles Without Ground Contact
6
Connection Data With Wire Protection
No
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠5 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
9 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Mating Cycles
500
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
FEMALE INSERT BAS BUP 6 2,5 50 AG
General Modular Version
No
General Pollution Degree
3
General Type
Female Insert
Model With Housing
No
Technical Data Din En 61984 Nominal Current
16 A
Technical Data Din En 61984 Nominal Voltage
500 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Maximum Flexible Wire Conductor Cross Secti
14 WG mm²
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
Technical Data Ulcsa Minimum Flexible Wire Conductor Cross Secti
26 WG mm²
Technical Data Ulcsa Rated Current According Canadian Standards
13 A
Technical Data Ulcsa Rated Current According Underwriters Labora
13 A
