Wieland BAS BUS 6 Industrial Connector Insert
Wieland BAS BUS 6 Industrial Connector Insert
SKU:IND-215be5
Wieland BAS BUS 6 Industrial Connector Insert - Female insert with 6-poles, 16A, 500V, tin-plated contacts. Reliable and durable for industrial use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland BAS BUS 6 Industrial Connector Insert
$29.99
Quantity: 1
Claim Your Seller Account
Wieland BAS BUS 6 Industrial Connector Insert
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

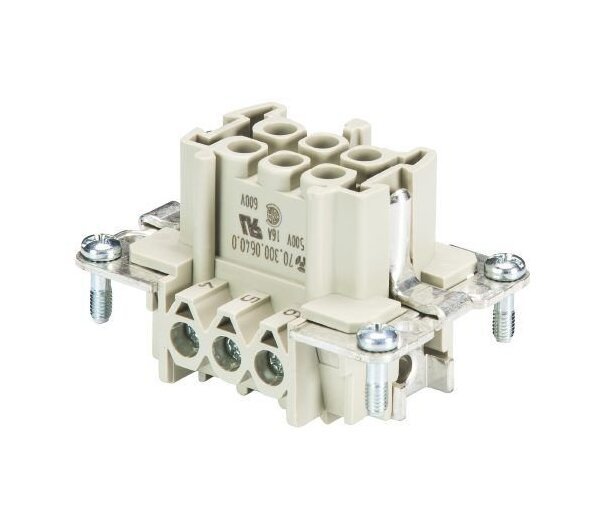

The Wieland BAS BUS 6 2.5 50 Industrial Connector Insert is a female insert designed for industrial multipole connectors. With a 6-pole configuration, this insert has a rated current of 16A and a rated voltage of 500V. Featuring tin-plated contacts, this connector ensures reliable and secure connections. It meets rigorous standards for inflammability, insulation material class, and temperature range. With a screw connection type and wire protection, it offers a durable and safe solution for electrical connections in industrial settings.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Screw Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
2.5 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
0.5 mm²
Connection Data Number Of Poles
6
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
6
Connection Data With Wire Protection
Yes
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠1.5 mΩ
Contacts Surface
Tin-Plated
Contacts Wire Strip Length
7 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Mating Cycles
200
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
FEMALE INSERT BAS BUS 6 2,5 50
General Modular Version
No
General Pollution Degree
3
General Type
Female Insert
Model With Housing
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Screws Head Design Clamping Screws
H1/0.5-0.7 N·m
Screws Head Design Ground Conductor Screws
H2/1.2-1.6 N·m
Screws Head Design Mounting Screws
H1/0.5-0.7 N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
500 V
Technical Data Din En 61984 Nominal Current
16 A
Technical Data Din En 61984 Nominal Voltage
500 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
